Same model may have multiple batches, images only for reference.

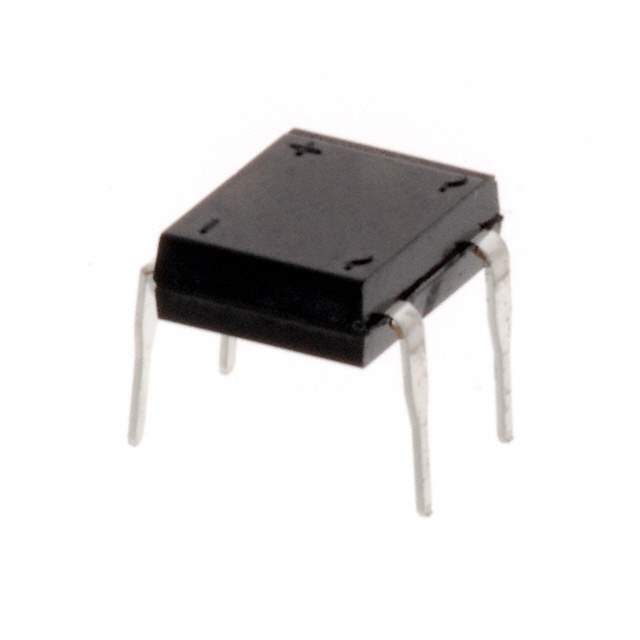

DF005MA-E3/45 Real Image
Same model may have multiple batches, images only for reference.

DF005MA-E3/45

Part No DF005MA-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE GPP 1A 50V DIP / Diode Rectifier Bridge Single 50V 1A 4-Pin Case DFM Tube
Datasheet
DF005MA-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 50V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-EDIP (0.300", 7.62mm)
Manufacturer Package DFM
Win Source Part Number 772549-DF005MA-E3/45
Popularity Medium
Supply and Demand Status Limited
Family Name DF005MA
Introduction Date July 31, 2000
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DF005MA-E3/45 CAD Model

Description

The electronic component with Id 710913 is a single-phase diode from Vishay Semiconductor Diodes Division manufacturer.

  • Packaging: Tube
  • Mounting: Through Hole
  • Operating Temperature Range: -55°C to 150°C
  • Peak Reverse Voltage: 50V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.1V @ 1A
  • Category: Discrete Semiconductor Products
  • Package: 4-EDIP (0.300", 7.62mm)
  • Popularity: Medium
  • Risk of Fake Products: 58%
  • Supply and Demand: Limited
