Same model may have multiple batches, images only for reference.

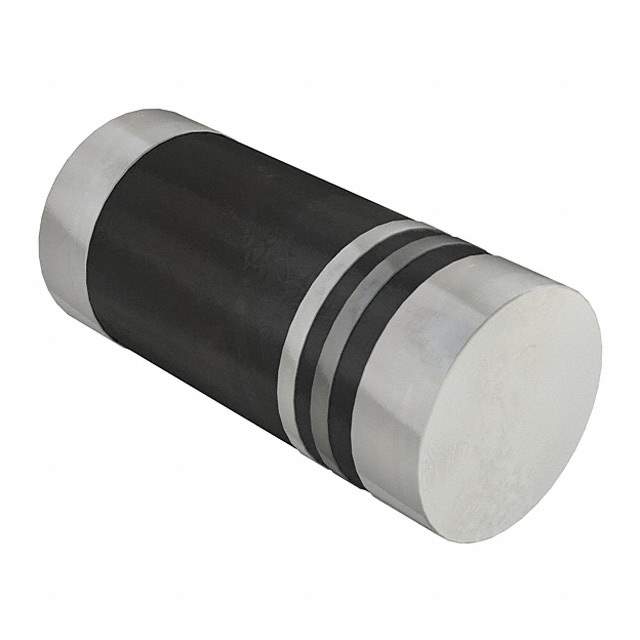

EGL34D-E3/98 Real Image
Same model may have multiple batches, images only for reference.

EGL34D-E3/98

Part No EGL34D-E3/98
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 500MA DO213
Datasheet
EGL34D-E3/98 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 5μA @ 200V
Capacitance @ Vr, F 7pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-213AA (GL34)
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1035940-EGL34D-E3/98
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EGL34D-E3/98 CAD Model

Description

The Vishay 1035940-EGL34D-E3/98 is a standard type diode designed for discrete semiconductor products.

  • Mount: SMD (SMT) mountable
  • Voltage - DC Reverse (Vr) (Max): 200V
  • Current - Average Rectified (Io): 500mA
  • Voltage - Forward (Vf) (Max) @ If: 1.25V @ 500mA
  • Reverse Recovery Time (trr): 50ns
  • Current - Reverse Leakage @ Vr: 5μA @ 200V
  • Capacitance @ Vr, F: 7pF @ 4V, 1MHz
  • Operating Temperature - Junction: -65°C to 175°C
  • Case / Package: DO-213AA (GL34)
  • Recovery Speed: Fast recovery speed of 200mA (Io)
  • Popularity: Popular
  • Supply and Demand Status: Sufficient
