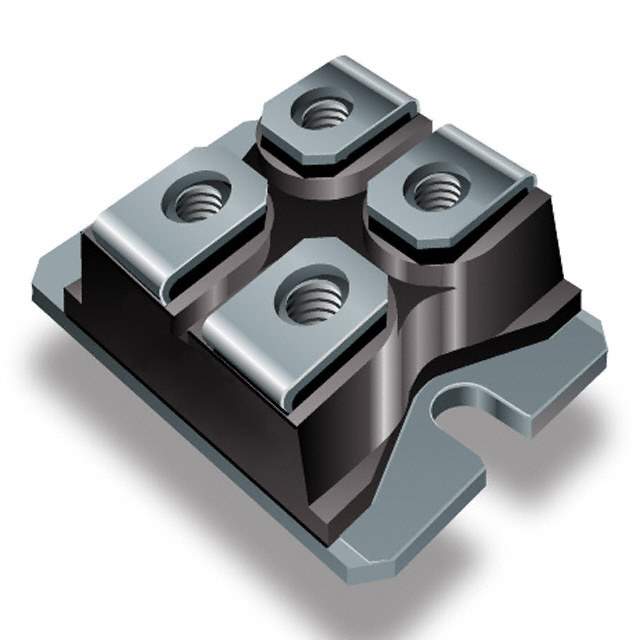

GA200SA60S Real Image
Same model may have multiple batches, images only for reference.

GA200SA60S

Part No GA200SA60S
Manufacturer Vishay
Catalog IGBTs - Modules
Description INSULATED GATE BIPOLAR TRANSISTOR | IGBT STD 600V 100A SOT227
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Status Obsolete
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 200A
Maximum Power 630W
Vce(on) (Maximum) at Vge, Ic 1.3V at 15V, 100A
Current - Collector Cutoff (Maximum) 1mA
Input Capacitance (Cies) at Vce 16.25nF at 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1176753-GA200SA60S
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GA200SA60S CAD Model

Description

Vishay Semiconductor Diodes Division is the manufacturer of this electronic component.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Win Source Part Number: 1176753-GA200SA60S
  • Manufacturer Homepage: www.irf.com
  • Status: Obsolete
  • Mounting Style: Chassis Mount
  • Configuration: Single Input
  • NTC Thermistor: No
  • Device Package: SOT-227B
  • Maximum Current Collector: 200A
  • Maximum Voltage Collector Emitter Breakdown: 600V
  • Maximum Current Collector Cutoff: 1mA
  • Manufacturer Pack Quantity: 10
  • MSL Level: 1 (Unlimited)
  • Maximum Power: 630W
  • Vce(on) (Maximum) @ Vge, Ic: 1.3V @ 15V, 100A
  • Input Capacitance (Cies) @ Vce: 16.25nF @ 30V
