Same model may have multiple batches, images only for reference.

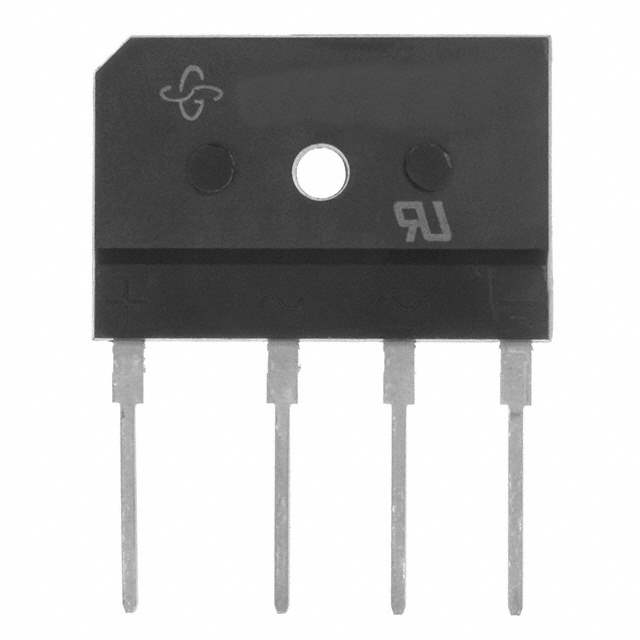

GSIB2560-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GSIB2560-E3/45

Part No GSIB2560-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Diode Rectifier Bridge Single 600V 3.5A 4-Pin Case GSIB-5S Tube / DIODE 25A 600V GSIB-5S
Datasheet
GSIB2560-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 3.5A
Voltage - Forward (Vf) (Max) @ If 1V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GSIB-5S
Win Source Part Number 130563-GSIB2560-E3/45
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Consumer Electronics, Industrial, Automation & Process Control
Family Name GSIB2560
ECCN EAR99
Country of Origin China
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian GSIB2560-E3/45 CAD Model

Description

The GSIB2560-E3/45 is a single-phase diode with a current rating of 3.5A.

  • Maximum Forward Voltage: 1V @ 12.5A
  • Peak Reverse Voltage: 600V
  • Mounting Type: Through Hole
  • Package: GSIB-5S
  • Technology: Standard
  • Reverse Leakage Current: 10μA @ 600V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Applications: Power Management, Consumer Electronics, Industrial, Automation, Process Control
  • Manufacturer: Vishay
  • Product Status: Active
  • Estimated EOL Date: 2033
  • Market Status: Highly Popular, Balanced Supply and Demand
