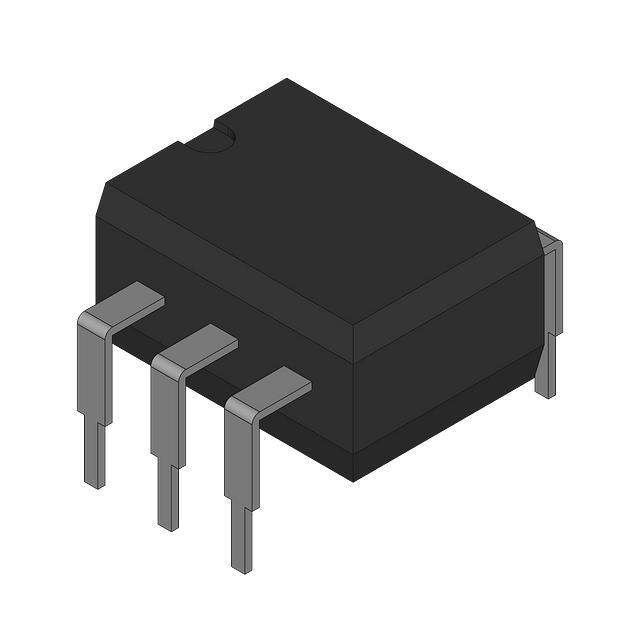

H11B2 Real Image
Same model may have multiple batches, images only for reference.

H11B2

Part No H11B2
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV DARL W/BASE 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Standard Package 2000
Category Isolators
Family Optoisolators - Transistor Photovoltaic Output
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 200% @ 1mA
Turn On / Turn Off Time (Typ) 5µs 30µs
Input Type DC
Output Type Darlington with Base
Voltage - Output (Max) 25V
Current - Output / Channel 100mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 60mA
Vce Saturation (Max) 1V
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300" 7.62mm)
Manufacturer Device Package 6-DIP
Catalog H11B1 2 3 Series
Win Source Part Number 067762-H11B2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H11B2 CAD Model

Description

The Vishay H11B2 is an optoisolator transistor photovoltaic output, part of the H11B1 2 3 Series.

  • Package: 6-DIP
  • Output Type: Darlington with Base
  • Input Type: DC
  • Current - DC Forward (If) (Max): 60mA
  • Voltage - Forward (Vf) (Typ): 1.1V
  • Number of Channels: 1
  • Voltage Isolation: 5300Vrms
  • Current Transfer Ratio (Min): 200% @ 1mA
  • Voltage - Output (Max): 25V
  • Vce Saturation (Max): 1V
  • Turn On / Turn Off Time (Typ): 5μs / 30μs
