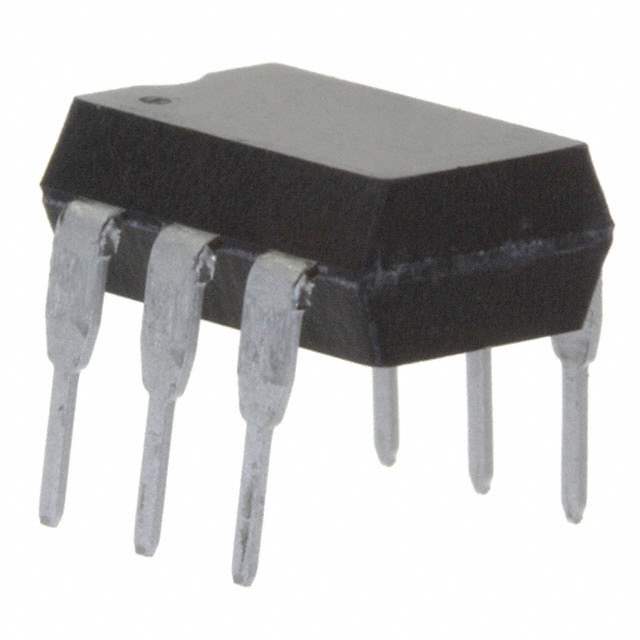

H11D2 Real Image
Same model may have multiple batches, images only for reference.

H11D2

Part No H11D2
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS W/BASE 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 20% @ 10mA
Switching Turn-On and Turn-Off Time 5μs, 6μs
Rise and Fall Time 2.5μs, 5.5μs
Input Type DC
Maximum Output Voltage 300V
Channel Output Current 100mA
Forward Voltage 1.1V
Continuous forward current- Max 60mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Win Source Part Number 001448-H11D2
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian H11D2 CAD Model

Description

The H11D2 is an isolator component manufactured by Vishay. The supply and demand status for this component is limited.

It has a minimum DC current transfer ratio of 20% at 10mA and a maximum output voltage of 300V. The H11D2 is an ideal choice for applications that require high isolation voltage and low power consumption.
