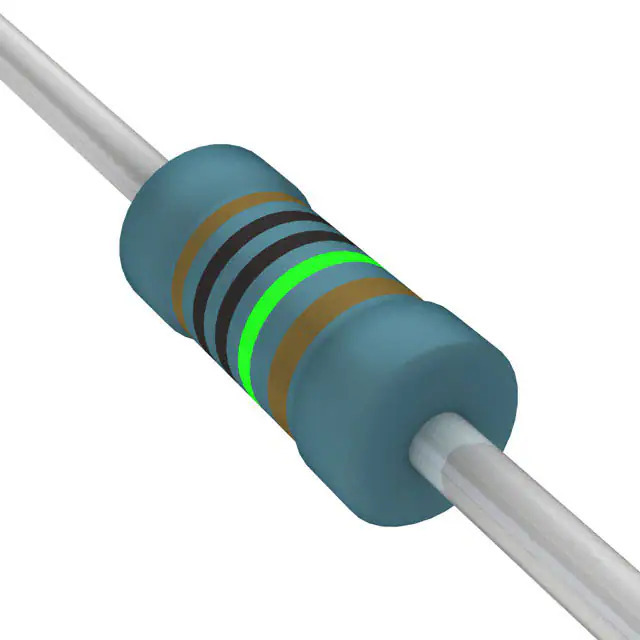

Same model may have multiple batches, images only for reference.
HVR3700001005FR500 Vishay
Same model may have multiple batches, images only for reference.

HVR3700001005FR500

Part No HVR3700001005FR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 10M OHM 1/2W 1% AXIAL
Datasheet
HVR3700001005FR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series HVR37
Package Tape & Reel (TR)
Product Status Active
Resistance 10 MOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.157" Dia x 0.394" L (4.00mm x 10.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374741-HVR3700001005FR500
Ultra Librarian 3D Model Ultra Librarian HVR3700001005FR500 CAD Model

Description

The HVR3700001005FR500 is a high voltage resistor manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Series: HVR37
  • Packaging: Tape and Reel
  • Resistance: 10 MOhms
  • Power Rating: 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Features: Flame Retardant Coating, Pulse Withstanding
  • Temperature Range: -55°C to 155°C
