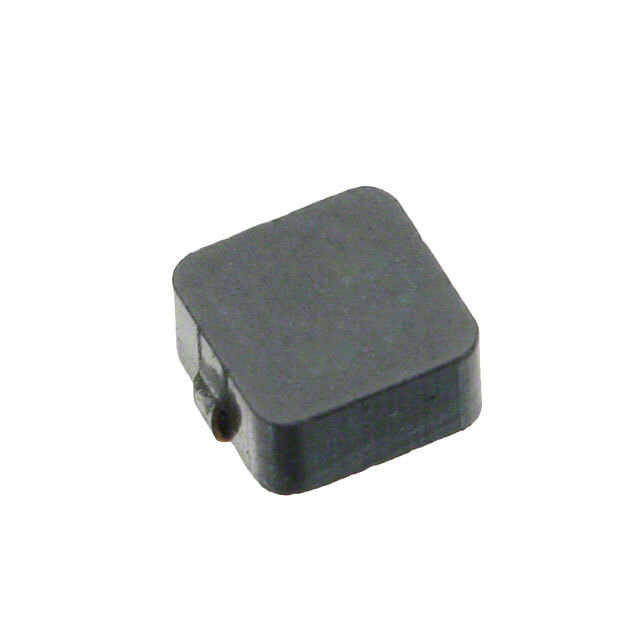

IHLP1212BZERR56M11

Part No IHLP1212BZERR56M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 560NH 5.5A 19.4MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Molded
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 19.4mOhm Max
Frequency - Self Resonant 110MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Max) 0.079\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1532357-IHLP1212BZERR56M11
Ultra Librarian 3D Model Ultra Librarian IHLP1212BZERR56M11 CAD Model

Description
