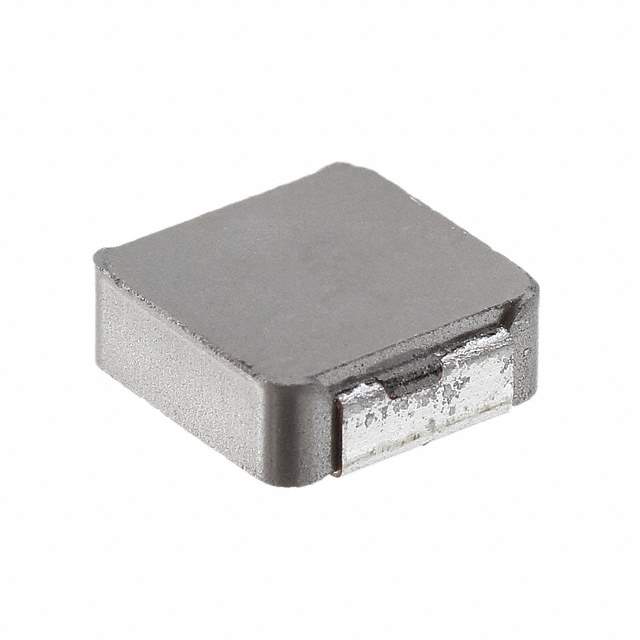

Same model may have multiple batches, images only for reference.

IHLP3232CZER100M11

Name: IHLP3232CZER100M11
Brand: Vishay
SKU: 1327464
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232CZER100M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 10UH 5.3A 55.1MOHM SMD / 10 µH Shielded Molded Inductor 5.3 A 55.1mOhm Max Nonstandard
Datasheet	IHLP3232CZER100M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Molded
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	5.3 A
Current - Saturation (Isat)	3.8A
Shielding	Shielded
DC Resistance (DCR)	55.1mOhm Max
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	541-4347-1,541-4347-2,541-4347-6,IHLP3232CZER100M11-ND
Standard Package	1,000
Win Source Part Number	1327464-IHLP3232CZER100M11
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER100M11 CAD Model

Alternative Products

Description

The Vishay Dale IHLP3232CZER100M11 is a shielded molded fixed inductor with 10 µH inductance and ±20% tolerance.

DC Resistance (DCR): 55.1mOhm Max
Current Rating: 5.3Amps
Mounting: Surface Mount
Self-Resonant Frequency: 12MHz
Temperature Range: -55°C to 125°C
Package: 1,000 units in a reel - TR
