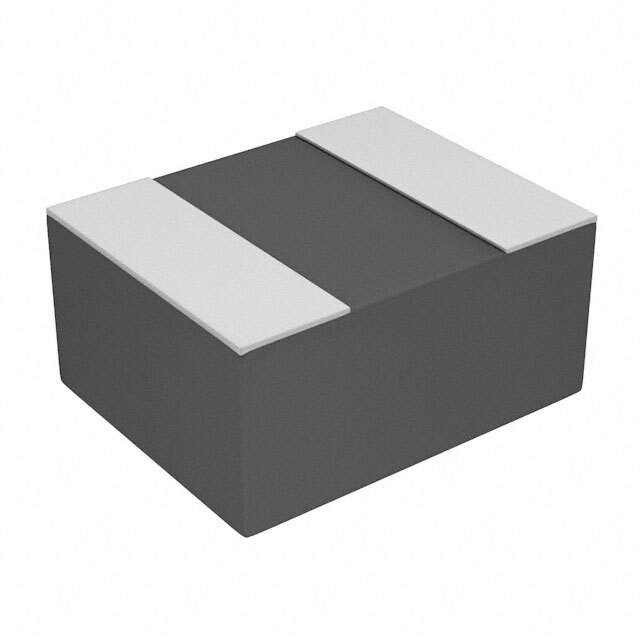

Same model may have multiple batches, images only for reference.

744383240068

Name: 744383240068
Brand: Wurth Electronics Inc
SKU: 857432
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744383240068
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 680NH 3.2A 59 MOHM SMD
Datasheet	744383240068 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-MAPI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	5.85A
Shielding	Shielded
DC Resistance (DCR)	59mOhm Max
Frequency - Self Resonant	102MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	2512
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857432-744383240068
Ultra Librarian 3D Model	Ultra Librarian 744383240068 CAD Model

Alternative Products

Description

The WE-MAPI series inductor is a molded, shielded fixed inductor designed for use in electronic circuits. Wurth Electronics Inc is the manufacturer.

Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height: 0.047" (1.20mm)
Mounting Type: Surface Mount
Inductance: 680nH
Tolerance: ±20%
DC Resistance (DCR): 59mOhm maximum
Core Material: Metal Composite
Self-Resonant Frequency: 102MHz
Temperature Range: -40°C to 125°C
Current Rating: 3.2A
Saturation Current: 5.85A
