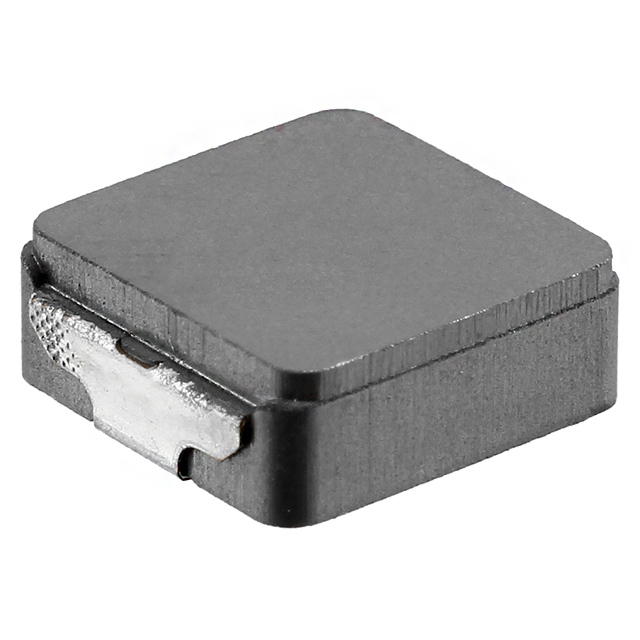

IHLP4040DZER3R3M8A

Part No IHLP4040DZER3R3M8A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 3.3UH 11A 11.81MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Molded
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 11.81mOhm Max
Frequency - Self Resonant 25.5MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Supplier Device Package 4040
Size / Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1532411-IHLP4040DZER3R3M8A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER3R3M8A CAD Model
