Same model may have multiple batches, images only for reference.

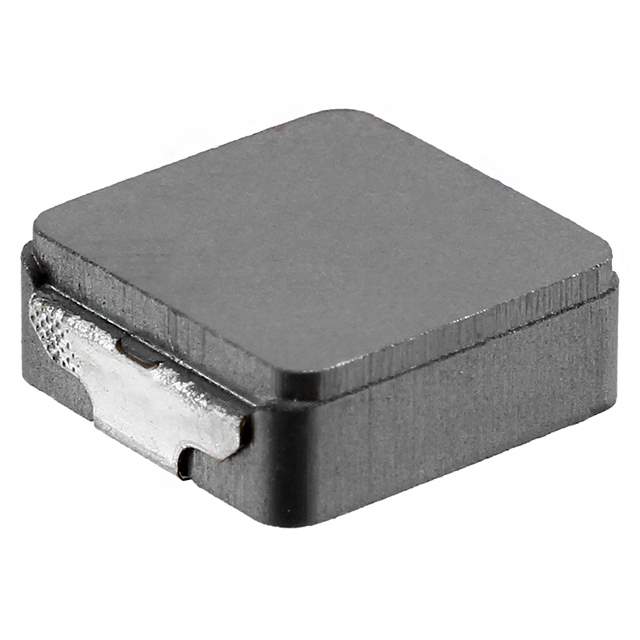

IHLP4040DZERR24M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZERR24M11

Part No IHLP4040DZERR24M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 240NH 33A 0.95MOHM SMD / 240 nH Shielded Molded Inductor 33 A 0.95mOhm Max Nonstandard
Datasheet
IHLP4040DZERR24M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-4040DZ-11
Package Tape & Reel
Type Molded
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 33 A
Current - Saturation (Isat) 44A
Shielding Shielded
DC Resistance (DCR) 0.95mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 4040
Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-IHLP4040DZERR24M11TR,541-IHLP4040DZERR24M11CT,IHLP4040DZERR24M11-ND,541-IHLP4040DZERR24M11DKR
Standard Package 500
Win Source Part Number 1087130-IHLP4040DZERR24M11
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZERR24M11 CAD Model

Description

The Vishay Dale IHLP-4040DZ-11 is a molded type, shielded inductor that belongs to the category of fixed inductors.

  • Inductance: 240 nH
  • Height: 0.157 inches
  • Package/Case: Non-standard
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance: 0.95 mOhm Max
  • Current Rating: 33A
  • Current Saturation: 44A
  • Availability: Win Source
