Same model may have multiple batches, images only for reference.

IHLP5050CEERR60M01

Name: IHLP5050CEERR60M01
Brand: Vishay
SKU: 809715
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP5050CEERR60M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 600NH 29A 2.2 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Vishay Dale
Packaging	Reel
Type	Molded
Inductance	600nH
Tolerance	±20%
Current Rating (Amps)	29A
Current - Saturation	51A
Shielding	Shielded
DC Resistance (DCR)	2.2mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard

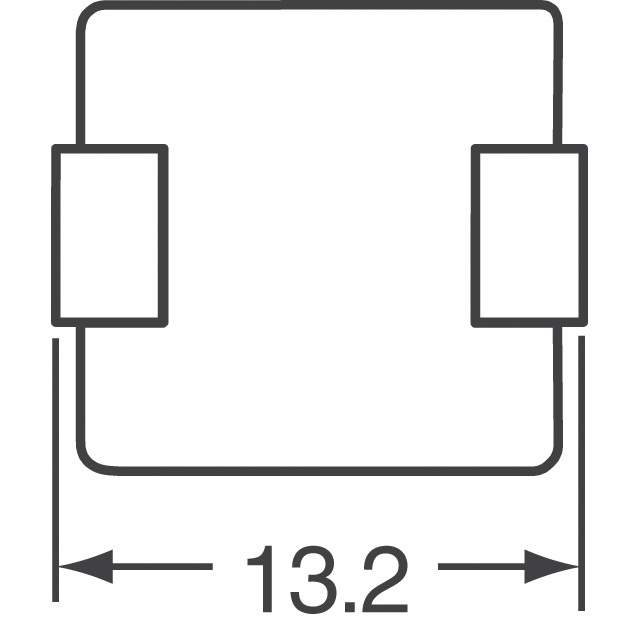

Dimension	0.520" L x 0.508" W (13.20mm x 12.90mm)
Height - Seated (Maximum)	0.138" (3.50mm)
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809717-IHLP5050CEERR60M01
Ultra Librarian 3D Model	Ultra Librarian IHLP5050CEERR60M01 CAD Model

Alternative Products

Description

The Vishay Dale IHLP5050CEERR60M01 is a high-quality molded type shielded inductor that is designed to provide optimal performance and reliability.

Inductance: 600nH
Tolerance: ±20%
Saturation Current: 51A
Operating Temperature Range: -55°C to 125°C
Dimensions: 0.520" L x 0.508" W (13.20mm x 12.90mm)
Maximum Seated Height: 0.138" (3.50mm)
