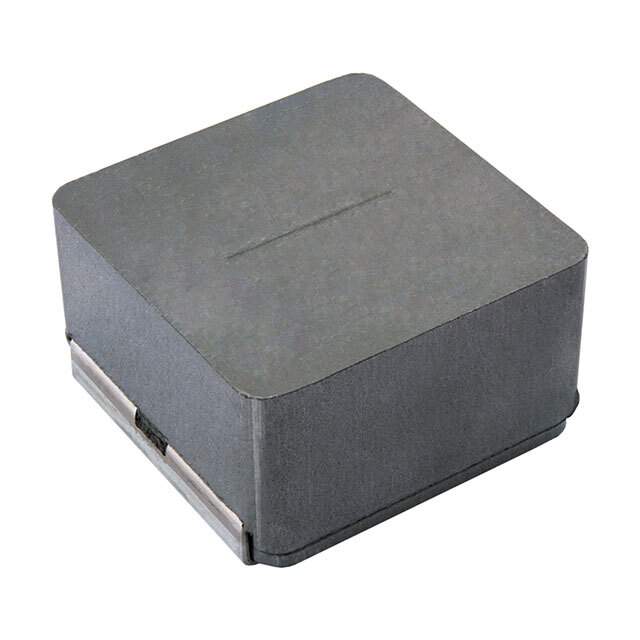

Same model may have multiple batches, images only for reference.

IHLP8787MZER150M51

Name: IHLP8787MZER150M51
Brand: Vishay
SKU: 1329016
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHLP8787MZER150M51
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 15UH 23.5A 6.11MOHM SM / 15 µH Shielded Molded Inductor 23.5 A 6.11mOhm Max Nonstandard
Datasheet	IHLP8787MZER150M51 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Vishay Dale
Packaging	Reel - TR
Type	Molded
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	23.5 A
Current - Saturation (Isat)	24A
Shielding	Shielded
DC Resistance (DCR)	6.11mOhm Max
Frequency - Self Resonant	4.71MHz
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max)	0.512" (13.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	541-IHLP8787MZER150M51CT,541-IHLP8787MZER150M51TR,541-IHLP8787MZER150M51DKR
Standard Package	100
Win Source Part Number	1329016-IHLP8787MZER150M51
Ultra Librarian 3D Model	Ultra Librarian IHLP8787MZER150M51 CAD Model

Alternative Products

Description

The IHLP8787MZER150M51 is a fixed inductor from Vishay Dale.

Shielding: Shielded
Packaging: Reel-TR
Inductance: 15 µH
Current Rating: 23.5A
DC Resistance (DCR): 6.11mOhm Max
Frequency Self-Resonant: 4.71MHz
Mounting Type: Surface Mountable
Tolerance: ±20%
Operating Temperature: -55°C to 155°C
Height Seated (max): 0.512" (13.00mm)
ROHS3 Compliant: ROHS3 Compliant
HTSUS: 8504.50.8000
