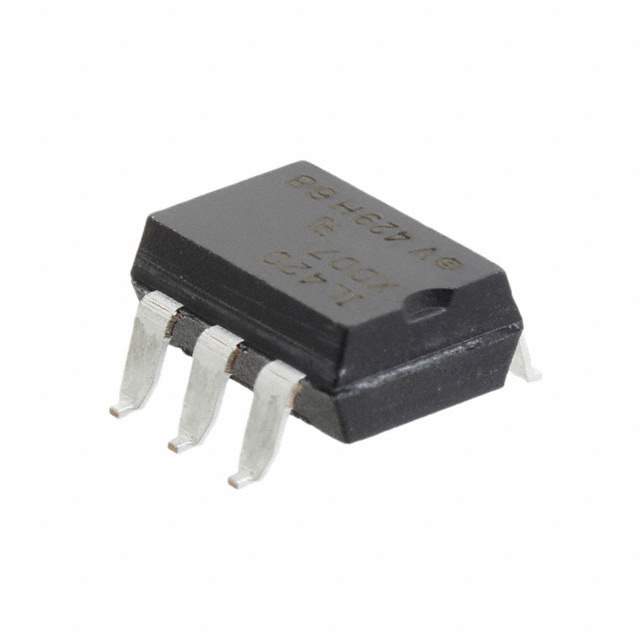

IL410-X019 Real Image
Same model may have multiple batches, images only for reference.

IL410-X019

Part No IL410-X019
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5.3KV TRIAC / Optoisolator Triac Output 5300Vrms 1 Channel
Datasheet
IL410-X019 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Vishay Semiconductor Opto Division
Package Tube
Product Status Obsolete
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5300Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 10kV/µs
Current - LED Trigger (Ift) (Max) 2mA
Current - On State (It (RMS) ) (Max) 300 mA
Current - Hold (Ih) 500µA
Turn On Time 35µs
Voltage - Forward (Vf) (Typ) 1.16V
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 6-SMD
Approval Agency CSA, UR, VDE
Base Product Number IL410
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1339863-IL410-X019
Ultra Librarian 3D Model Ultra Librarian IL410-X019 CAD Model

Description

The Vishay IL410-X019 is an optoisolator with a triac output type.

  • Voltage-Off State: 600V
  • Voltage-Isolation: 5300Vrms
  • Mounting Type: Surface Mount
  • Package/Case: 6-SMD
  • Current-Hold (Ih): 500μA
  • Turn-On Time: 35μs
  • ECCN: EAR99
  • Approvals: CSA, UR, VDE
