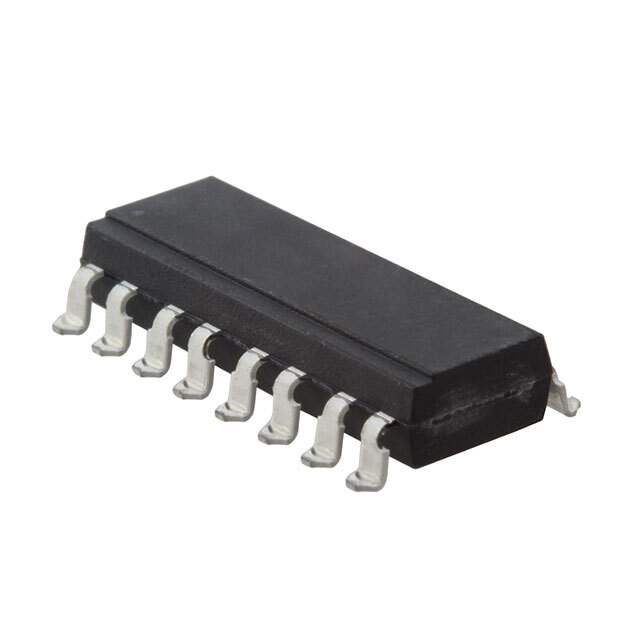

ILQ615-3X007 Real Image
Same model may have multiple batches, images only for reference.

ILQ615-3X007

Part No ILQ615-3X007
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 4CH TRANS 16SMD
Datasheet
ILQ615-3X007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 100% @ 10mA
Maximum DC Current Transfer Ratio 200% @ 10mA
Switching Turn-On and Turn-Off Time 3μs, 2.3μs
Rise and Fall Time 2μs, 2μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 16-SMD
Win Source Part Number 105901-ILQ615-3X007
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ILQ615-3X007 CAD Model

Description

The Vishay ILQ615-3X007 is a 4-channel optocoupler with a minimum DC current transfer ratio of 100% at 10mA and maximum DC current transfer ratio of 200% at 10mA.

  • Component: SMD (SMT)
  • Isolation Voltage: 5300Vrms
  • Maximum Output Voltage: 70V
  • Switching Turn-On Time: 3μs
  • Switching Turn-Off Time: 2.3μs
  • Rise Time: 2μs
  • Fall Time: 2μs
  • Forward Voltage: 1.15V
  • Suitable for Use In: a range of applications, including industrial control, communication systems, and digital logic ground isolation
