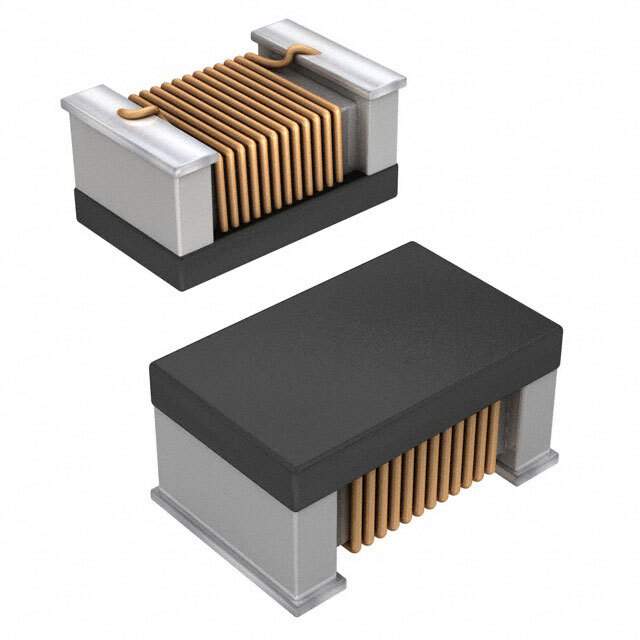

The IMC0805ER1R0J01 from Vishay is a 1 µH inductor in the 0805 (2.00 mm x 1.25 mm) surface mount package. It is a drum core, wirewound inductor with an unshielded construction. The inductor has a tolerance of ±5% and a current rating of 180 mA. The DC resistance (DCR) of the inductor is 2.13 ohms maximum and the Q factor is 35 at 50 MHz. The self-resonant frequency of the inductor is 200 MHz.

The IMC0805ER1R0J01 is a versatile inductor that can be used in a wide range of applications, including:

Power supply filtering EMI suppression Noise filtering Signal conditioning Oscillator circuits Inductive filters The inductor is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).

Here is a more detailed description of some of the key features of the IMC0805ER1R0J01 inductor:

Compact size: The 0805 package is a small surface mount package that is ideal for space-constrained applications. High current rating: The inductor has a current rating of 180 mA, which makes it suitable for a wide range of applications. Wide operating temperature range: The inductor has an operating temperature range of -40°C to 125°C, which makes it suitable for use in harsh environments. RoHS compliant: The inductor is RoHS compliant, which means that it does not contain any hazardous substances. The IMC0805ER1R0J01 inductor is a high-quality, reliable component that is well-suited for a wide range of applications. It is available from a variety of distributors and is typically in stock.

Here are some examples of specific applications where the IMC0805ER1R0J01 inductor can be used:

Power supplies: The inductor can be used to filter the output of a power supply to reduce ripple and noise. EMI suppression: The inductor can be used to suppress EMI emissions from electronic devices. Noise filtering: The inductor can be used to filter noise from signals. Signal conditioning: The inductor can be used to condition signals for further processing. Oscillator circuits: The inductor can be used to create oscillator circuits. Inductive filters: The inductor can be used to create inductive filters. The IMC0805ER1R0J01 inductor is a versatile component that can be used in a wide range of applications. It is a high-quality, reliable component that is well-suited for demanding applications.
