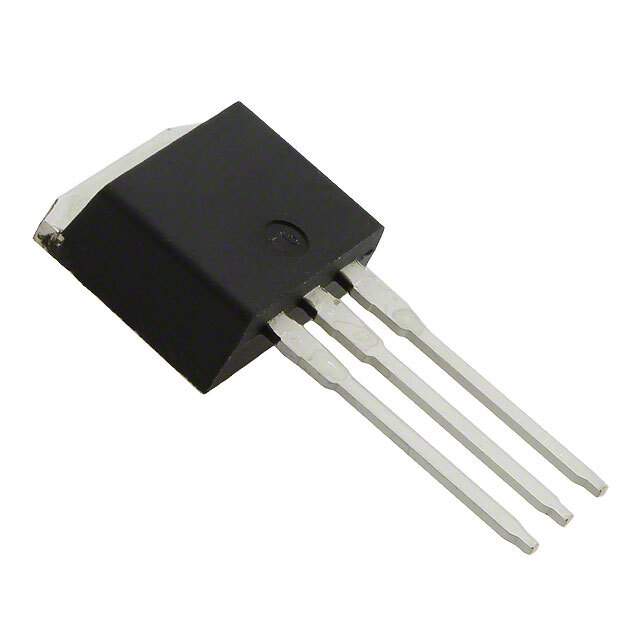

IRF840AL Real Image1 IRF840AL Real Image2
Same model may have multiple batches, images only for reference.
IRF840AL Real Image1 IRF840AL Real Image2
IRF840AL Real Image1 IRF840AL Real Image2
Same model may have multiple batches, images only for reference.

IRF840AL

Part No IRF840AL
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 8A I2PAK / N-Channel 500 V 8A (Tc) 3.1W (Ta), 125W (Tc) Through Hole I2PAK
Datasheet
IRF840AL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr Vishay
Series -
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 850mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 38 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 1018 pF @ 25 V
FET Feature -
Power Dissipation (Max) 3.1W (Ta), 125W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package I2PAK
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Base Product Number IRF840
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 50 pcs
Win Source Part Number 1382326-IRF840AL
Ultra Librarian 3D Model Ultra Librarian IRF840AL CAD Model

Description

The IRF840AL is an N-channel MOSFET transistor from Vishay. It is a discrete semiconductor product used in various applications that require switching or amplification of signals.

  • Drain-to-Source Voltage (Vdss): 500V
  • Continuous Drain Current (Id) @ 25°C: 8A
  • On-Resistance (Rds On): 850mOhm @ 4.8A and 10V
  • Gate Threshold Voltage (Vgs(th)): 4V @ 250μA
  • Power Dissipation: 3.1W (Ta), 125W (Tc)
  • Mounting Type: Through-Hole
  • Package: TO-262-3 long leads, I²Pak
