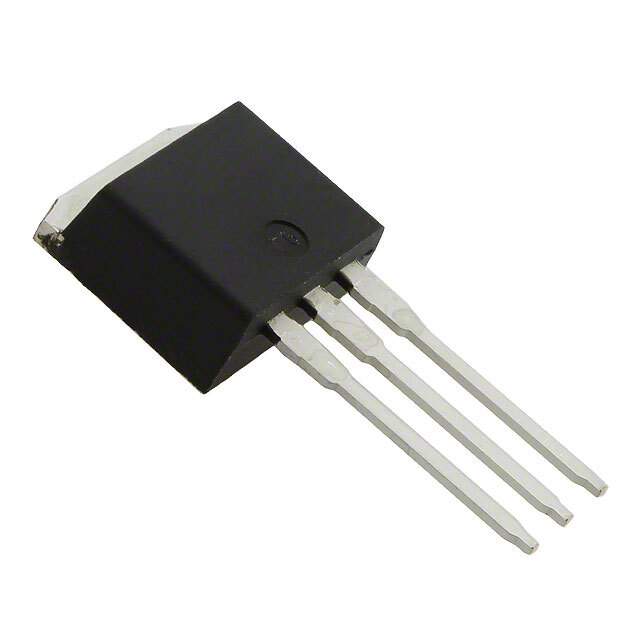

IRF9Z14LPBF

Name: IRF9Z14LPBF
Brand: Vishay
SKU: 461969
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRF9Z14LPBF
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 60V 6.7A TO-262
Datasheet	IRF9Z14LPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Tube/Rail
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	60V
Continuous Drain Current at 25°C	6.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	4V @ 250μA
Max Gate Charge	12nC @ 10V
Max Input Capacitance	270pF @ 25V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.7W (Ta), 43W (Tc)
Maximum Rds On at Id,Vgs	500 mOhm @ 4A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	Through Hole
Case / Package	I2PAK
Dimension	TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number	1046791-IRF9Z14LPBF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRF9Z14LPBF CAD Model

Description

The Vishay IRF9Z14LPBF is a P-Channel MOSFET transistor that is designed for use in various applications such as power supplies, DC-DC converters, and motor control circuits.

Maximum Power Dissipation: 3.7W (Ta), 43W (Tc)
Drain-Source Breakdown Voltage: 60V
Continuous Drain Current: 6.7A (Tc)
Maximum Rds On @ Id,Vgs: 500 mOhm @ 4A, 10V
Gate-Source Threshold Voltage: 4V @ 250μA
Maximum Gate Charge: 12nC @ 10V
Maximum Input Capacitance: 270pF @ 25V
Maximum Gate-Source Voltage: ±20V
Package: I2PAK package
Operating Temperature Range: -55°C to 175°C (TJ)
