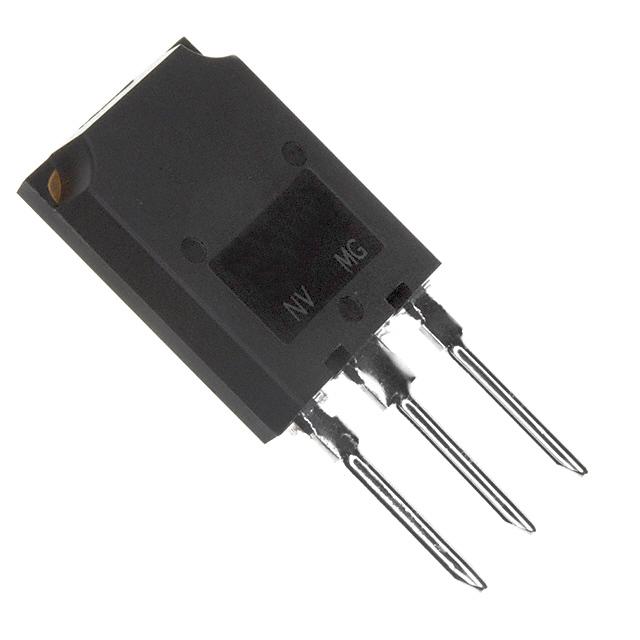

Same model may have multiple batches, images only for reference.
IRFPS29N60LPBF Vishay
Same model may have multiple batches, images only for reference.

IRFPS29N60LPBF

Part No IRFPS29N60LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 29A SUPER247
Datasheet
IRFPS29N60LPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 220nC @ 10V
Max Input Capacitance 6160pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 480W (Tc)
Maximum Rds On at Id,Vgs 210 mOhm @ 17A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 205382-IRFPS29N60LPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFPS29N60LPBF CAD Model

Description

The Vishay 205382-IRFPS29N60LPBF is an N-channel MOSFET with a drain-source breakdown voltage of 600V and a continuous drain current of 29A (Tc).

  • Drain-Source Breakdown Voltage: 600V
  • Continuous Drain Current: 29A (Tc)
  • Gate-Source Threshold Voltage: 5V @ 250µA
  • Maximum Gate Charge: 220nC @ 10V
  • Maximum Input Capacitance: 6160pF @ 25V
  • Maximum Rds on: 210 mOhm @ 17A, 10V
