Same model may have multiple batches, images only for reference.

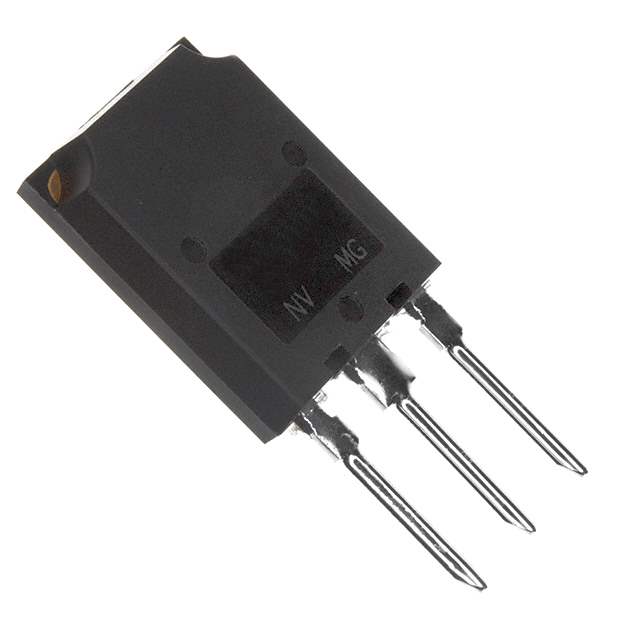

IRFPS38N60LPBF Real Image
Same model may have multiple batches, images only for reference.

IRFPS38N60LPBF

Part No IRFPS38N60LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 38A SUPER247
Datasheet
IRFPS38N60LPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 38A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 320nC @ 10V
Max Input Capacitance 7990pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 540W (Tc)
Maximum Rds On at Id,Vgs 150 mOhm @ 23A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 007616-IRFPS38N60LPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFPS38N60LPBF CAD Model

Description

This MOSFET electronic component is manufactured by Vishay and has a Win Source Part Number of 007616-IRFPS38N60LPBF.

  • Package: SUPER-247 (TO-274AA)
  • Drain-Source Breakdown Voltage: 600V
