The Vishay IRFR020PBF is an N-channel MOSFET that has a drain-source breakdown voltage of 60V and a continuous drain current of 14A (Tc) at 25°C.

• Drain-Source Breakdown Voltage: 60V
• Continuous Drain Current: 14A (Tc) @ 25°C
• Maximum Rds On: 100 mOhm @ 8.4A, 10V
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate-Source Voltage: ±20V
• Max Gate Charge: 25nC @ 10V

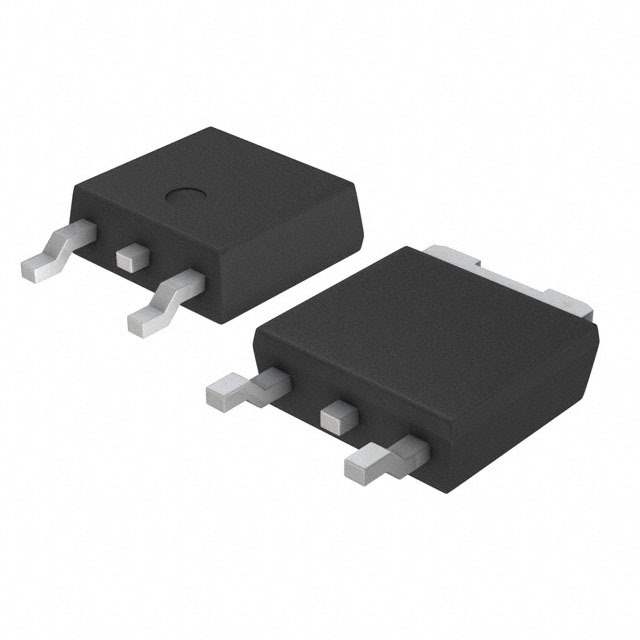

• Package: D-Pak
• Dimension: TO-252-3, DPak (2 Leads + Tab), SC-63
• Power Dissipation: 2.5W (Ta), 42W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Operating Temperature Range: -55°C to 150°C (TJ)
• Category: Discrete Semiconductor Products
