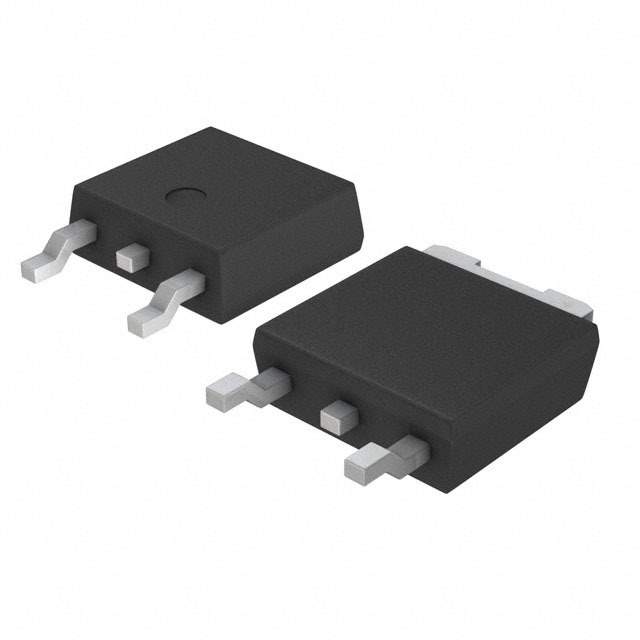

The Vishay IRFR110PBF is an N-channel MOSFET transistor with a drain-source breakdown voltage of 100V and a continuous drain current of 4.3A @ 25°C.

• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current: 4.3A @ 25°C
• Maximum Power Dissipation: 2.5W (Ta) or 25W (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate-Source Voltage: ±20V
• Maximum Rds On @ Id, Vgs: 540 mOhm @ 2.6A, 10V
• Operating Temperature Range: -55°C to 150°C
• Package: D-Pak
• Dimensions: TO-252-3, DPak (2 Leads + Tab), SC-63
• Compliance: RoHS compliant
