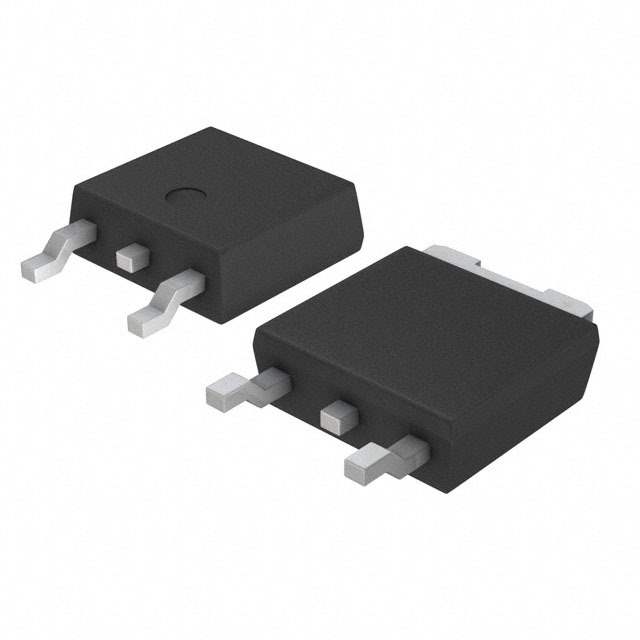

The Vishay IRFR9014TRPBF is a P-channel MOSFET transistor with a drain-source breakdown voltage of 60V and a continuous drain current at 25°C of 5.1A (Tc).

• Max Rds On @ Id,Vgs: 500 mOhm @ 3.1A, 10V
• Gate-Source Threshold Voltage: 4V @ 250μA
• Maximum Gate-Source Voltage: ±20V
• Max Gate Charge: 12nC @ 10V
• Input Capacitance: 270pF @ 25V
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Operating Temperature Range: -55°C to 150°C (TJ)
• Package: D-Pak
• Market Status: common-used part and is popular in the market
• Supply and Demand Status: balanced
• Halogen-Free: compliant
• Estimated EOL Date: 2027
