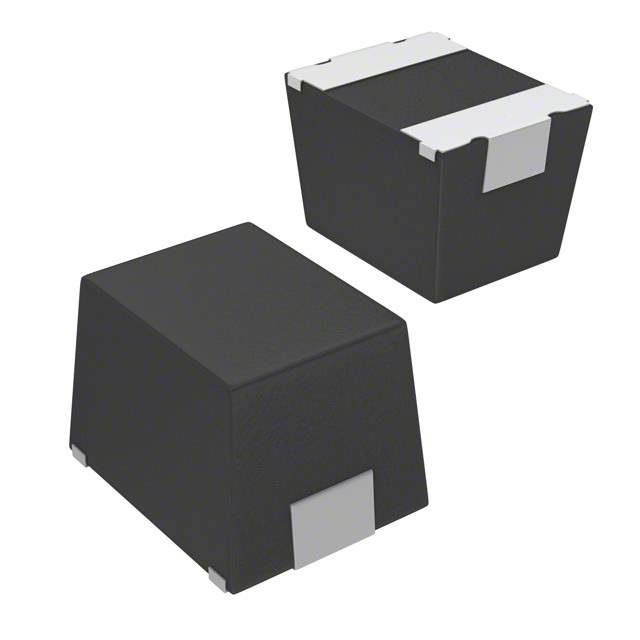

Same model may have multiple batches, images only for reference.

ISC1210ER2R2K

Name: ISC1210ER2R2K
Brand: Vishay
SKU: 984219
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ISC1210ER2R2K
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 320MA 900MOHM SM / 2.2 µH Shielded Drum Core, Wirewound Inductor 320 mA 900mOhm Max 1210 (3225 Metric)
Datasheet	ISC1210ER2R2K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	ISC-1210
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	2.2 µH
Tolerance	±10%
Current Rating (Amps)	320 mA
Shielding	Shielded
DC Resistance (DCR)	900mOhm Max
Q @ Freq	30 @ 7.96MHz
Frequency - Self Resonant	65MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	7.96 MHz
Mounting	SMD (SMT)
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Dimension	0.126" L x 0.098" W (3.20mm x 2.49mm)
Height - Seated (Max)	0.095" (2.41mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	ISC1210ER2R2K-ND,541-1602-6,541-1602-2,541-1602-1
Standard Package	2,000
Win Source Part Number	984219-ISC1210ER2R2K
Ultra Librarian 3D Model	Ultra Librarian ISC1210ER2R2K CAD Model

Alternative Products

Description

The ISC-1210 series inductor is a drum core, wirewound type component that is shielded to reduce electromagnetic interference.

Inductance: 2.2 µH
Tolerance: ±10%
Core Material: iron powder
Q @ Freq: 30 @ 7.96MHz
Self-Resonant Frequency: 65MHz
DC Resistance (DCR): 900mOhm Max
Mounting: SMD (SMT)
Package/Case: 1210 (3225 Metric)
Operating Temperature: -55°C ~ 125°C
