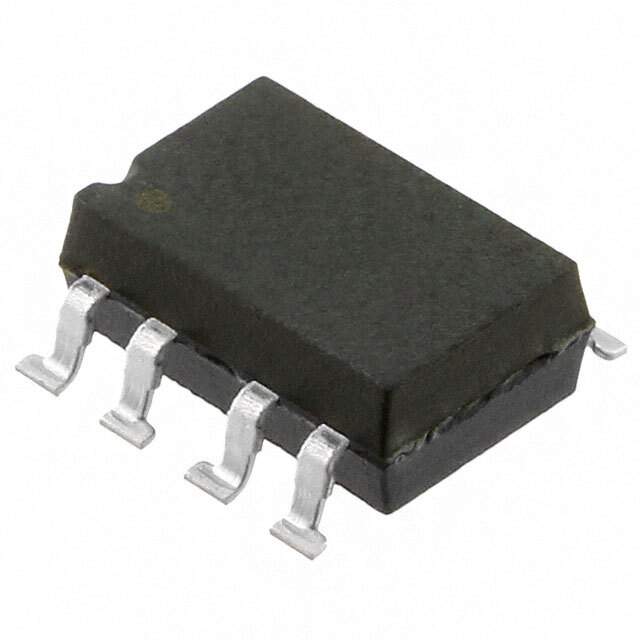

LH1522AAC Real Image
Same model may have multiple batches, images only for reference.

LH1522AAC

Part No LH1522AAC
Manufacturer Vishay
Catalog Solid State Relays
Description Dual 1 Form A Solid State Relay
Datasheet
LH1522AAC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay Semiconductor Opto Division
Series LH1522
Packaging Tube
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 10 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 ~ 200 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 1196392-LH1522AAC
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Sensing & Instrumentation
Family Name LH1522AAC
Introduction Date August 28, 2001
ECCN EAR99
Country of Origin China ,Malaysia
Halogen Free Unknown
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian LH1522AAC CAD Model

Description

The Vishay Semiconductor Opto Division LH1522AAC is a high-quality electronic component designed for use in various applications.

  • Manufacturer: Vishay Semiconductor Opto Division
  • The product has a medium popularity and a limited supply and demand status.
  • The component is a DPST (2 Form A) relay type with load current of 120mA and voltage load of 0 ~ 200 V.
  • It has a voltage input of 1.26VDC and output type of AC, DC.
  • The package is 8-SMD (0.300", 7.62mm) with gull wing termination style.
  • The manufacturer homepage is www.vishay.com.
