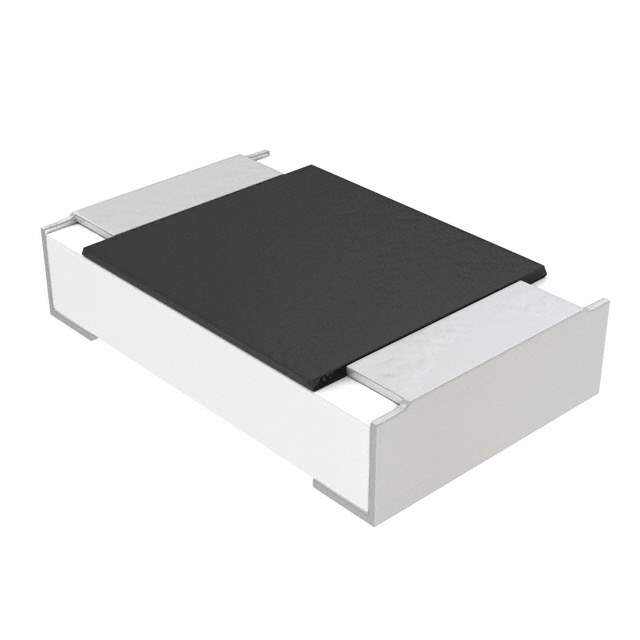

Same model may have multiple batches, images only for reference.

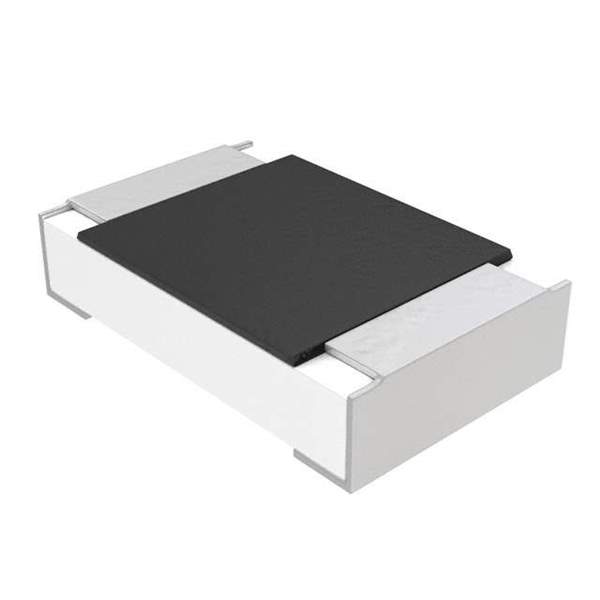

MCU08050C3904FP500 Real Image
Same model may have multiple batches, images only for reference.

MCU08050C3904FP500

Part No MCU08050C3904FP500
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 3.9M OHM 1% 1/5W 0805
Datasheet
MCU08050C3904FP500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay Beyschlag
Series MCU 0805 - Professional
Packaging Reel package
Resistance (Ohms) 3.9M
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package 0805
Manufacturer Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Maximum) 0.022" (0.55mm)
Number of Terminations 2
Win Source Part Number 766449-MCU08050C3904FP500
Popularity Medium
Supply and Demand Status Limited
Family Name MCU 0805
Introduction Date March 11, 2008
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MCU08050C3904FP500 CAD Model

Description

The Vishay Beyschlag MCU 0805 - Professional series resistor is a thin film resistor with a power rating of 0.2W and a resistance of 3.9M ohms.

  • Power: 0.2W
  • Resistance: 3.9M ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Package: 0805
  • Terminations: 2
  • Package Type: Reel
  • Height (Seated): 0.022" (0.55mm)
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Country of Origin: United States of America
  • Estimated EOL Date: 2027
