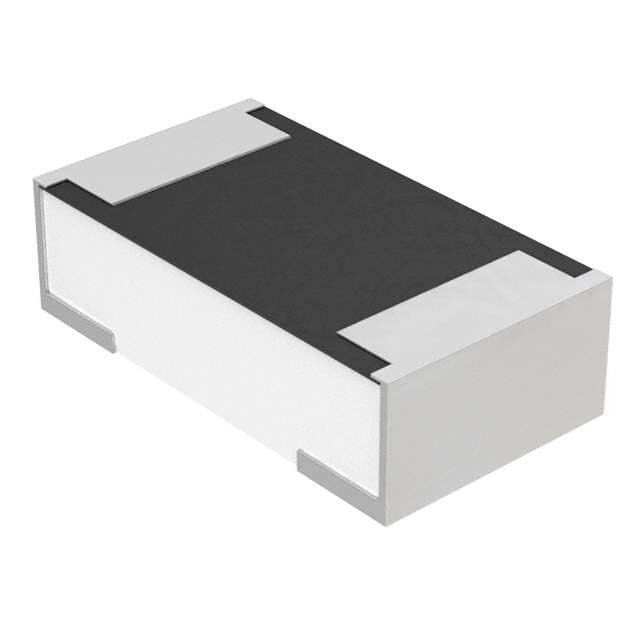

MFU0603FF02000P100 Real Image
Same model may have multiple batches, images only for reference.

MFU0603FF02000P100

Part No MFU0603FF02000P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 2A 32VDC 0603  /  2 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
MFU0603FF02000P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0101
Approval Agency IEC, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
DC Cold Resistance 0.057 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names MFU06032.00CT,MFU06032.00TR,MFU06032.00DKR
Standard Package 1,000
Win Source Part Number 966161-MFU0603FF02000P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF02000P100 CAD Model

Description

The MFU0603FF02000P100 is a circuit protection fuse manufactured by Vishay Beyschlag/Draloric/BC Components.

  • Series: MFU
  • Fuse Type: Board mount (cartridge style excluded)
  • Voltage Rating: 32 V DC
  • Response Time: Fast blow
  • Breaking Capacity at Rated Voltage: 50A
  • Melting I2t: 0.0101
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range of Operation: -55°C to 125°C
  • Dimension: 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
  • Type: EAR99
  • HTSUS: 8536.10.0040
  • Alternative Parts (cross-reference): 3412.0120.22, 3414.0120.26, 030102.5H, 3412.0119.22, 0287002.PXCN, 0297002.WXNVMFU0603FF02000P100., and MFU0603FF02000P100...
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 2 A
  • Approval Agency: IEC and UL
