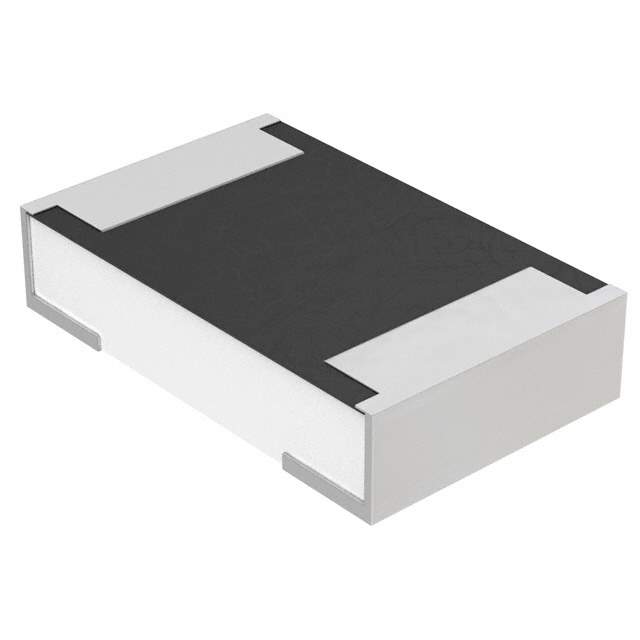

MFU0805FF04000P500 Real Image1 MFU0805FF04000P500 Real Image2
Same model may have multiple batches, images only for reference.
MFU0805FF04000P500 Real Image1 MFU0805FF04000P500 Real Image2
MFU0805FF04000P500 Real Image1 MFU0805FF04000P500 Real Image2
Same model may have multiple batches, images only for reference.

MFU0805FF04000P500

Part No MFU0805FF04000P500
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 4A 32VDC 0805 / 4 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0805 (2012 Metric)
Datasheet
MFU0805FF04000P500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Vishay
Series MFU
Package Tape & Reel (TR)
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0805 (2012 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0403
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm)
DC Cold Resistance 0.02 Ohms
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5,000 pcs
Win Source Part Number 1382887-MFU0805FF04000P500
Ultra Librarian 3D Model Ultra Librarian MFU0805FF04000P500 CAD Model

Description

The MFU0805FF04000P500 is a surface mount fuse designed for circuit protection applications.

  • Voltage Rating: 32V
  • Response Time: Fast Blow
  • Breaking Capacity: 50A @ Rated Voltage
  • Size: 0.079" L x 0.049" W x 0.018" H
  • Standard Package: 5,000 pcs
  • Approval: UL
  • Moisture Sensitivity Level: 1 (Unlimited)
