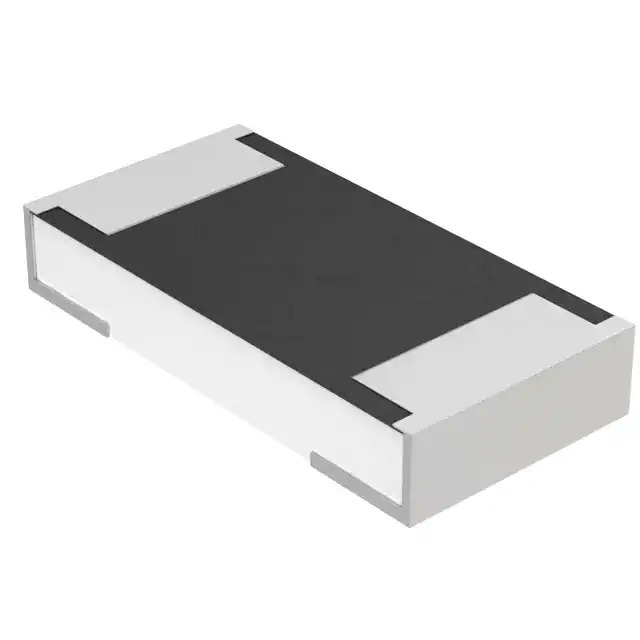

MFU1206FF04000P100 Vishay
Same model may have multiple batches, images only for reference.

MFU1206FF04000P100

Part No MFU1206FF04000P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MOUNT 4A 63VDC 1206 / 4 A AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
MFU1206FF04000P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4 A
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.0404
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
DC Cold Resistance 0.028 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361419-MFU1206FF04000P100
Ultra Librarian 3D Model Ultra Librarian MFU1206FF04000P100 CAD Model

Description

The MFU1206FF04000P100 is a surface mount fuse from Vishay Beyschlag/Draloric/BC Components' MFU series.

  • Current Rating: 4A
  • Voltage Rating: 63V
  • Operating Temperature: -55°C to 125°C
  • Size: 0.126" L x 0.063" W x 0.022" H (3.20mm x 1.60mm x 0.55mm)
  • Package: 1206 (3216 Metric)
  • Response Time: Fast Blow
  • Breaking Capacity: 50A
  • Melting I²t: 0.0404
