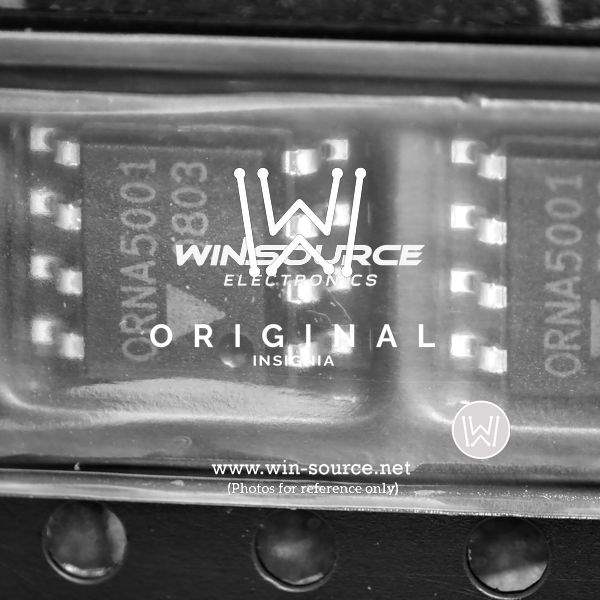

ORNTA5001AT1 Real Image ORNTA5001AT1 Real Image
Same model may have multiple batches, images only for reference.
ORNTA5001AT1 Real Image ORNTA5001AT1 Real Image
ORNTA5001AT1 Real Image ORNTA5001AT1 Real Image
Same model may have multiple batches, images only for reference.

ORNTA5001AT1

Part No ORNTA5001AT1
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 5K OHM 8SOIC  /  5k Ohm ±0.1% 100mW Power Per Element Isolated 4 Resistor Network/Array ±25ppm/°C 8-SOIC (0.154", 3.90mm Width)
Datasheet
ORNTA5001AT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Vishay Dale Thin Film
Series ORN
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 5k
Tolerance ±0.1%
Number of Resistors 4
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±5ppm/°C
Number of Pins 8
Power Per Element 100mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Dimension 0.194" L x 0.157" W (4.93mm x 3.99mm)
Height - Seated (Max) 0.068" (1.73mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Other Names ORNT-5KATR,ORNT-5KADKR,ORNT-5KACT
Standard Package 1,000
Win Source Part Number 1208009-ORNTA5001AT1
Ultra Librarian 3D Model Ultra Librarian ORNTA5001AT1 CAD Model

Description

The Vishay Dale Thin Film ORNTA5001AT1 is a resistor network consisting of 4 isolated resistors with a resistance of 5k ohms each.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Package Type: 8-SOIC (0.154", 3.90mm Width)
  • Supplied Form: Tape and reel
  • Power per Element: 100mW
  • Resistor Matching Ratio: ±0.05%
  • Resistor-Ratio-Drift: ±5ppm/°C
  • ECCN: EAR99
  • REACH: Unaffected
