Same model may have multiple batches, images only for reference.

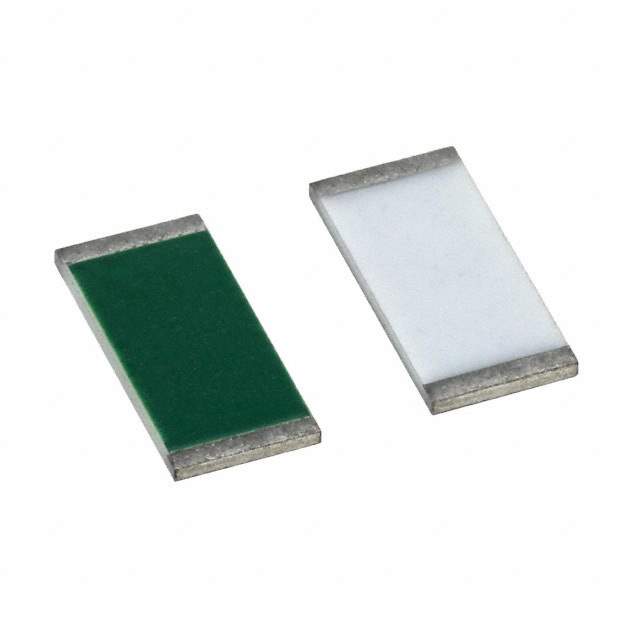

PAT0603E4000BST1 Real Image
Same model may have multiple batches, images only for reference.

PAT0603E4000BST1

Part No PAT0603E4000BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 400 OHM 0.1% 0.15W 0603 / 400 Ohms ±0.1% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
PAT0603E4000BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PAT
Package Tape & Reel
Resistance 400 Ohms
Tolerance ±0.1%
Power (Watts) 0.15W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341315-PAT0603E4000BST1
Ultra Librarian 3D Model Ultra Librarian PAT0603E4000BST1 CAD Model

Description

The Vishay Dale Thin Film PAT0603E4000BST1 is a chip resistor that is surface mountable.

  • Power Rating: 0.15W
  • Resistance: 400 Ohms
  • AEC-Q200: rated
  • Temperature Coefficient: ±25ppm/°C
  • Moisture Resistant: yes
  • Anti-Sulfur: yes
  • Manufacturer: Vishay
