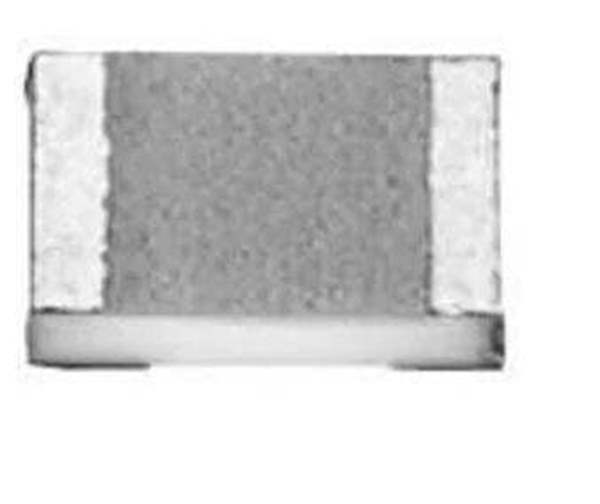

PHT0603Y2002BGT

Part No PHT0603Y2002BGT
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description SFERNICE THIN FILMS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Sfernice
Category Resistors > Chip Resistor - Surface Mount
Packaging Tape & Reel (TR)
Part Status Active
Resistance 20 kOhms
Tolerance (+ or -) 0.1 %
Length 1.52 mm (0.06 in)
Width 0.85 mm (0.033 in)
Height 0.5 mm (0.02 in)
Voltage Rating 75 V
Ultra Librarian 3D Model Ultra Librarian PHT0603Y2002BGT CAD Model

Description

FEATURES

• Operating temperature range: -55 °C; +215 °C

• Storage temperature: -55 °C; +230 °C

• Gold terminations (< 1 μm thick)

• 5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request

• Temperature coefficient down to 15 ppm (-55 °C; +215 °C)

• Tolerance down to 0.05 %

• Load life stability: 0.35 % max. after 2000 h at 220 °C (ambient) at Pn

• Shelf life stability: 0.7 % typ. (1 % max.) after 15 000 h at 230 °C

• SMD wraparound

• TCR remains constant after long term storage at 230 °C (15 000 h)
