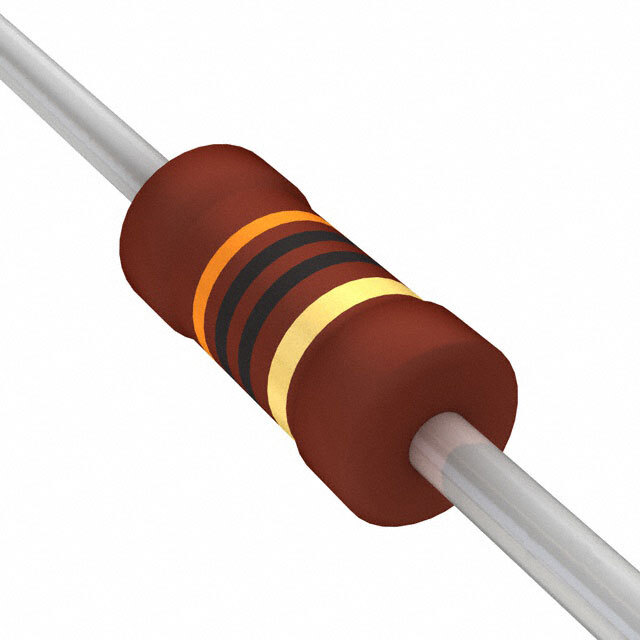

Same model may have multiple batches, images only for reference.
PR01000102202JR500 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PR01000102202JR500

Part No PR01000102202JR500
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 22K OHM 5% 1W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 22 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1579918-PR01000102202JR500
Ultra Librarian 3D Model Ultra Librarian PR01000102202JR500 CAD Model

Description

N
