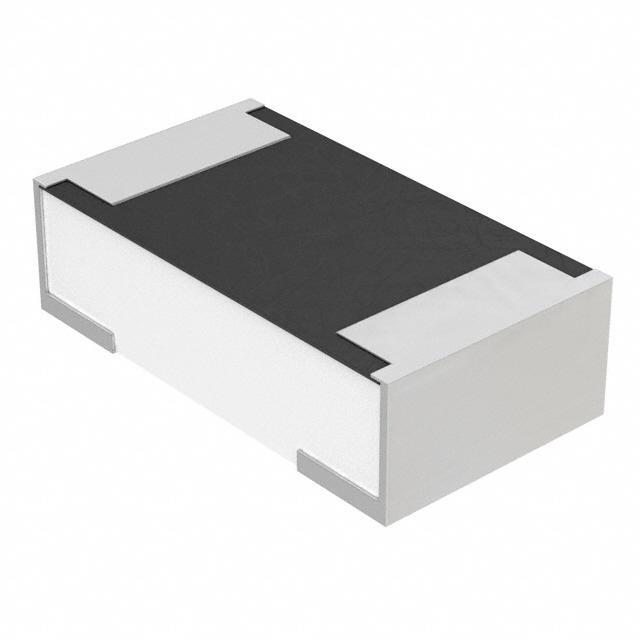

Same model may have multiple batches, images only for reference.
PTS060301B100RP100 Vishay
Same model may have multiple batches, images only for reference.

PTS060301B100RP100

Part No PTS060301B100RP100
Manufacturer Vishay
Catalog Temperature Sensors - RTD (Resistance Temperature Detector)
Description SENSOR RTD 100OHM 1% 0603 / 100 Ohms RTD Platinum (Pt) ±0.3% 3850ppm/°C 0603 (1608 Metric)
Datasheet
PTS060301B100RP100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Temperature Sensors - RTD (Resistance Temperature Detector)
Mfr Vishay
Series PTS
Package Tape & Reel
Product Status Active
Resistance @ 0°C 100 Ohms
Resistance Tolerance ±0.3%
RTD Material Platinum (Pt)
Temperature Range - Operating -55°C ~ 155°C
Termination SMD (SMT) Tabs
Temperature Coefficient 3850ppm/°C
Current 500 µA
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 507202-PTS060301B100RP100
Ultra Librarian 3D Model Ultra Librarian PTS060301B100RP100 CAD Model

Description

The PTS060301B100RP100 is a surface mount temperature sensor from Vishay's PTS series.

  • Type: Resistance Temperature Detector (RTD)
  • Resistance: 100 Ohms @ 0°C
  • Temperature Coefficient: 3850ppm/°C
  • Resistance Tolerance: ±0.3%
  • Current Consumption: 500μA
  • Package: 0603
  • Operating Temperature Range: -55°C to 155°C
  • Termination: Surface mount
  • Packaging: Tape and reel (1,000 pcs)
