Same model may have multiple batches, images only for reference.

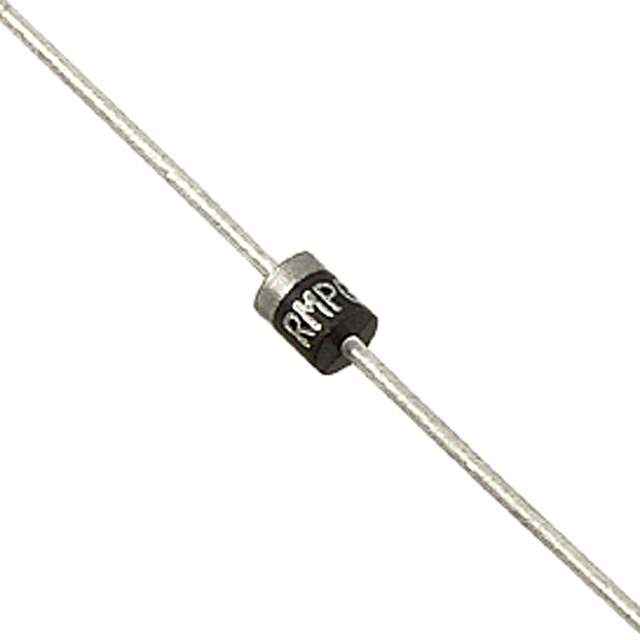

SB020-E3/73 Real Image
Same model may have multiple batches, images only for reference.

SB020-E3/73

Part No SB020-E3/73
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SB020-E3/73 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Box (TB)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 600mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 600 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SB020
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281905-SB020-E3/73
Ultra Librarian 3D Model Ultra Librarian SB020-E3/73 CAD Model

Description

The Vishay Schottky diode is a fast recovery diode with a maximum reverse voltage of 20 V and an average rectified current of 600 mA.

  • Diode is designed for use in: discrete semiconductor products such as rectifiers and single diodes
  • Forward Voltage: 550 mV @ 600 mA
  • Reverse Leakage Current: 500 µA @ 20 V
  • Package: axial MPG06 package
  • Operating Temperature Range: -65°C to 125°C
  • ECCN: EAR99
  • REACH: Not affected by REACH
  • Status: Obsolete
