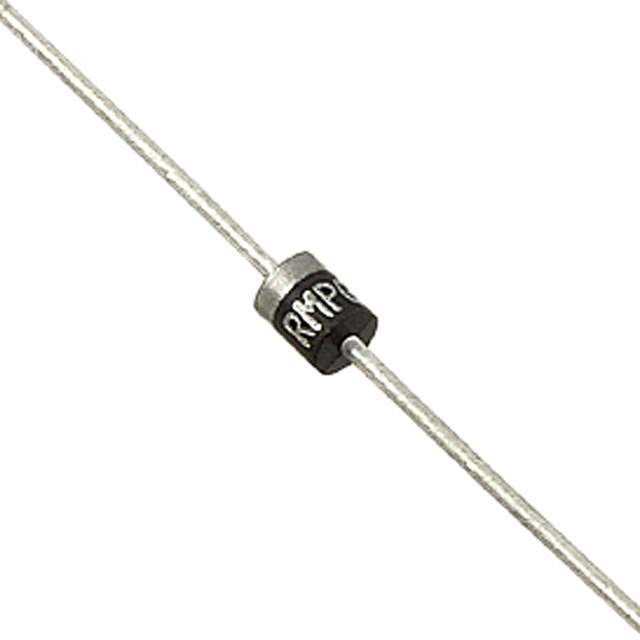

SB040-E3/100 Real Image
Same model may have multiple batches, images only for reference.

SB040-E3/100

Part No SB040-E3/100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SB040-E3/100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Box (TB)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 600mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 600 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SB040
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281902-SB040-E3/100
Ultra Librarian 3D Model Ultra Librarian SB040-E3/100 CAD Model

Description

The Vishay General Semiconductor - Diodes Division SB040 series is a Schottky type, fast recovery rectifier diode designed for through-hole technology.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 600mA
  • Forward Voltage: 550mV @ 600mA
  • Reverse Leakage Current: 500μA @ 40V
  • Capacitance: no capacitance value specified
  • Operating Temperature Range: -65°C to 125°C
  • Package/Case: MPG06 axial
  • Part of: the obsolete series
