Same model may have multiple batches, images only for reference.

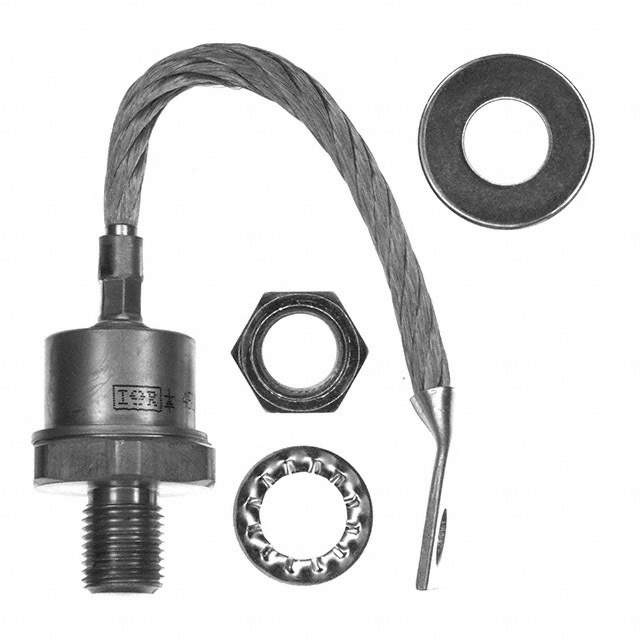

SD200N12PV Real Image
Same model may have multiple batches, images only for reference.

SD200N12PV

Part No SD200N12PV
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Datasheet
SD200N12PV Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 200A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 630 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 mA @ 1200 V
Mounting Type Stud Mount
Package / Case DO-205AC, DO-30, Stud
Supplier Device Package DO-205AC (DO-30)
Operating Temperature - Junction -40°C ~ 180°C
Base Product Number SD200
Other Names *SD200N12PV
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1281948-SD200N12PV
Ultra Librarian 3D Model Ultra Librarian SD200N12PV CAD Model

Description

The 1281948-SD200N12PV is a standard recovery diode with a reverse voltage of 1200 V and an average rectified current of 200A.

  • Reverse Voltage: 1200 V
  • Average Rectified Current: 200A
  • Forward Voltage: 1.4 V @ 630 A
  • Reverse Leakage Current: 15 mA @ 1200 V
  • Diode Type: Standard
  • Package: DO-205AC, DO-30, Stud
