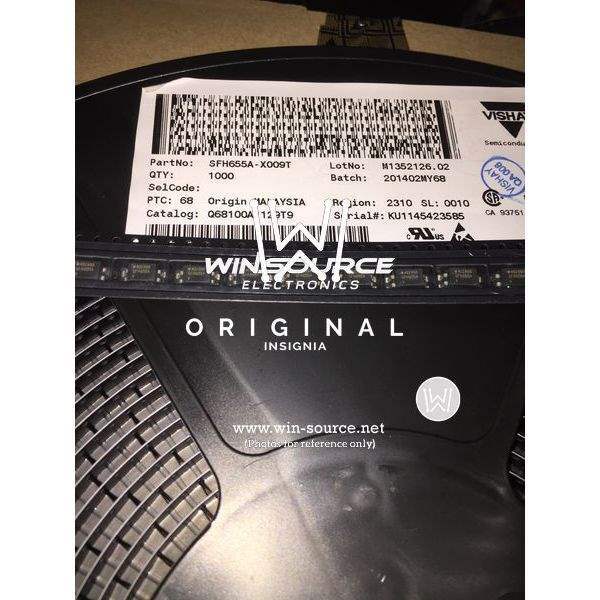

SFH655A-X009T Vishay SFH655A-X009T Real Image SFH655A-X009T label picture 2 SFH655A-X009T real image
Same model may have multiple batches, images only for reference.
SFH655A-X009T Vishay SFH655A-X009T Real Image SFH655A-X009T label picture 2 SFH655A-X009T real image
SFH655A-X009T Vishay SFH655A-X009T Real Image SFH655A-X009T label picture 2 SFH655A-X009T real image
Same model may have multiple batches, images only for reference.

SFH655A-X009T

Part No SFH655A-X009T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Darlington DC-OUT 4-Pin PDIP SMD T/R / OPTOISOLATOR 5.3KV DARL 4SMD
Datasheet
SFH655A-X009T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Switching Turn-On and Turn-Off Time 16μs, 15μs
Rise and Fall Time 14μs, 14μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 55V
Channel Output Current 125mA
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 211580-SFH655A-X009T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SFH655A
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SFH655A-X009T CAD Model

Description

This electronic component is manufactured by Vishay and belongs to the SFH655A family.

  • Packaging: 4-SMD
  • Mounting Type: SMD (SMT)
  • Maximum Output Voltage: 55V
  • Channel Output Current: 125mA
  • Minimum DC Current Transfer Ratio: 600% @ 1mA
  • Switching Turn-On Time: 16μs
  • Switching Turn-Off Time: 15μs
  • Rise Time: 14μs
  • Fall Time: 14μs
  • Continuous Forward Current-Max: 60mA
  • Isolation Voltage: 5300Vrms
  • Temperature Range: -55°C to 100°C
