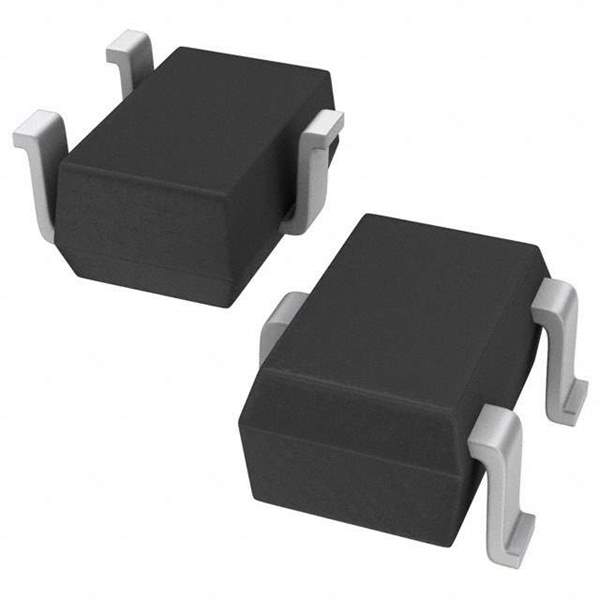

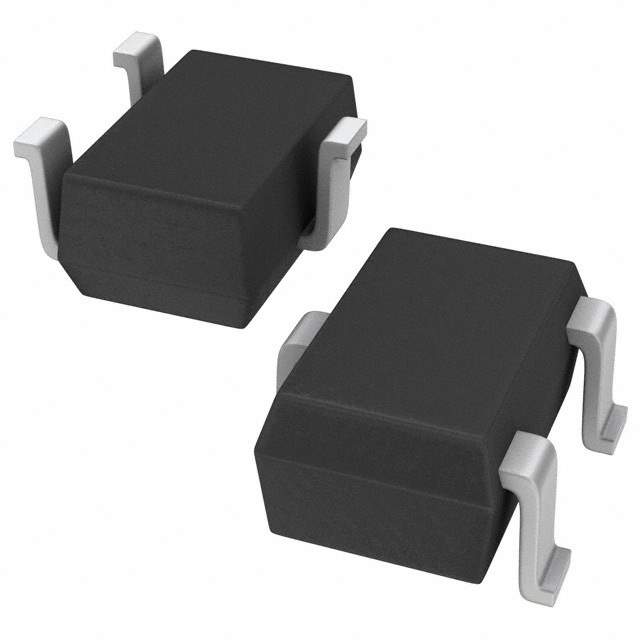

The SI1305EDL-T1-E3 is a P-Channel 20-V MOSFET from Vishay. This device is designed to offer low on-resistance and fast switching, making it ideal for load switching and small signal applications. It comes in a compact SOT-23 package for space-saving designs.

Applications

• Load Switching
• Portable Devices
• DC-DC Converters
• Battery Management Systems
• Small Signal Amplification

Features

• P-Channel MOSFET
• Low On-Resistance: RDS(on) = 0.160 Ω at VGS = -4.5 V
• Low Threshold Voltage: VGS(th) = -1 V (Typical)
• Fast Switching Speed
• Small Footprint: SOT-23 Package
• Halogen-free According to IEC 61249-2-21 Definition

Benefits

• High Efficiency: The low on-resistance minimizes power loss during switching, contributing to higher efficiency in power management applications.
• Extended Battery Life: Low threshold voltage and low gate charge make it suitable for battery-powered devices, improving battery life.
• Space-Saving: The SOT-23 package allows for compact design in portable devices and other space-constrained applications.
• Simplified Design: The low threshold voltage simplifies the gate drive requirements, reducing component count and cost.
• Environmentally Friendly: The halogen-free construction complies with environmental standards.

Technical Specifications

• Polarity: P-Channel
• Maximum Drain-Source Voltage (VDS): -20 V
• Gate-Source Voltage (VGS): ±8 V
• Continuous Drain Current (ID): -2.3 A
• Pulsed Drain Current (IDM): -6 A
• Total Power Dissipation (PD): 0.83 W
• Operating Temperature: -55 °C to +150 °C
• Package: SOT-23

The SI1305EDL-T1-E3 MOSFET from Vishay offers a combination of low on-resistance and fast switching in a compact SOT-23 package. This device is well-suited for load switching, portable devices, and other applications requiring efficient power management.
