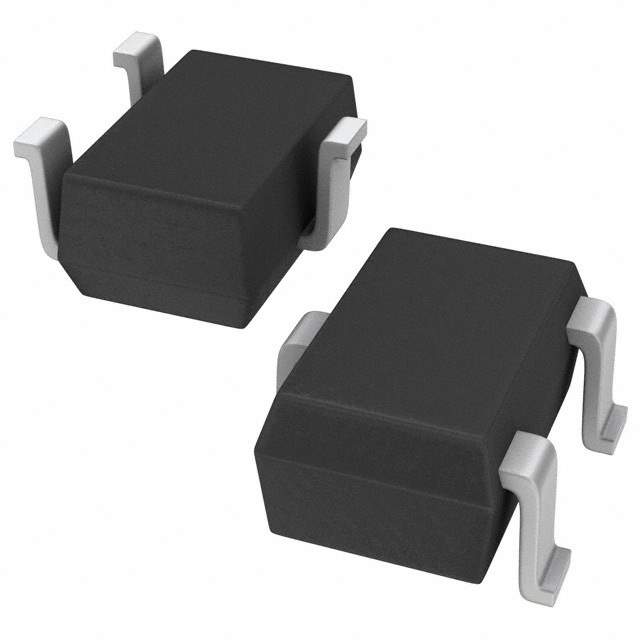

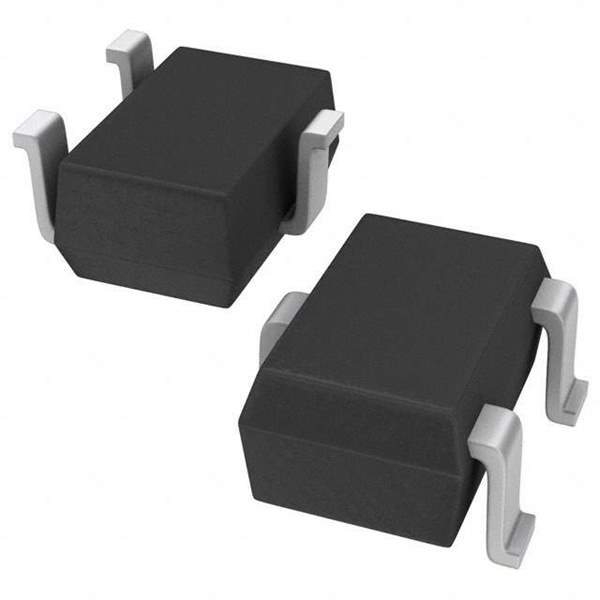

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 850mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 450mV @ 250μA (Min)
Max Gate Charge 5nC @ 4.5V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 290mW (Ta)
Maximum Rds On at Id,Vgs 290 mOhm @ 1A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-3
Dimension SC-70, SOT-323
Win Source Part Number 115045-SI1307EDL-T1-E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SI1307EDL-T1-E3 CAD Model

Description

The Vishay SI1307EDL-T1-E3 is a P-Channel MOSFET designed for use in a wide variety of applications.

  • Power Dissipation: 290mW (Ta)
  • Applications: discrete semiconductor products
  • Drain-Source Breakdown Voltage: 12V
  • Maximum Gate-Source Voltage: ±8V
  • Maximum Rds On @ Id,Vgs: 290 mOhm @ 1A, 4.5V
  • Gate-Source Threshold Voltage: 450mV @ 250μA (Min)
  • Maximum Gate Charge: 5nC @ 4.5V
  • Package: SC-70-3 and SOT-323
  • Mounting: SMD (SMT)
  • Drive Voltage: 1.8V, 4.5V
  • Status: Obsolete(EOL)
  • Temperature Range: -55°C to 150°C (TJ)
  • Supply and Demand: Balance
