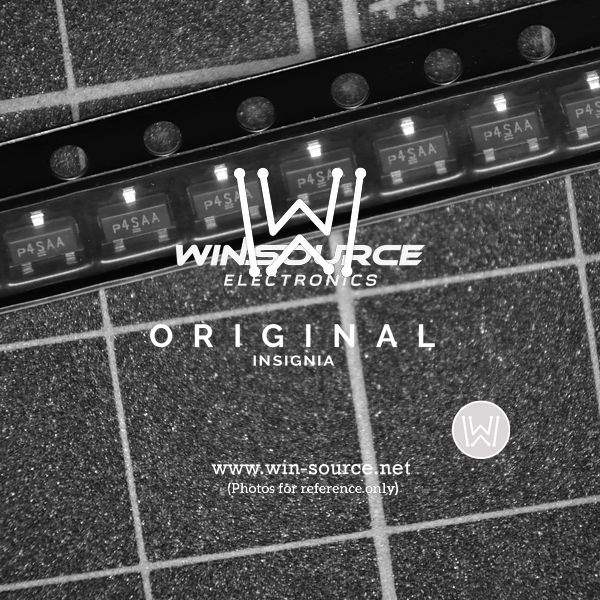

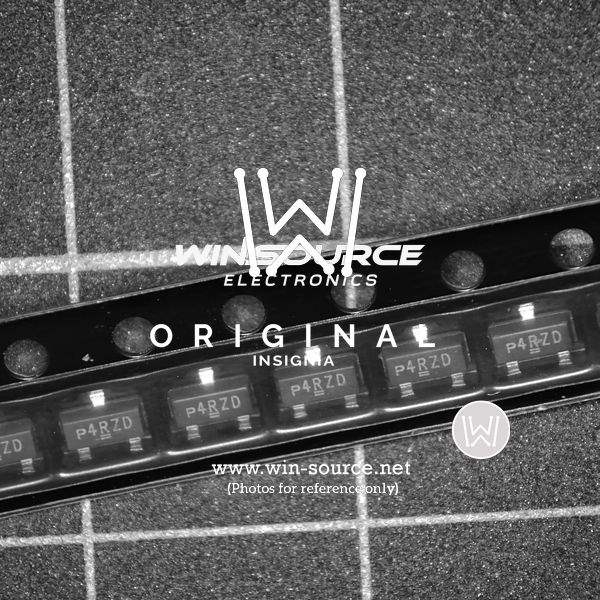

Same model may have multiple batches, images only for reference.

SI2304DDS-T1-GE3

Name: SI2304DDS-T1-GE3
Brand: Vishay
SKU: 320990
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SI2304DDS-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 3.3A SOT23
Datasheet	SI2304DDS-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	3.3A (Ta), 3.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.2V @ 250μA
Max Gate Charge	6.7nC @ 10V
Max Input Capacitance	235pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.1W (Ta), 1.7W (Tc)
Maximum Rds On at Id,Vgs	60 mOhm @ 3.2A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOT-23-3 (TO-236)
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	028368-SI2304DDS-T1-GE3
Family Name	Si2304DDS
Introduction Date	June 02, 2010
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Industrial, Power Management
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian SI2304DDS-T1-GE3 CAD Model

Alternative Products

Description

The Si2304DDS-T1-GE3 is an N-channel MOSFET with a drain-source breakdown voltage of 30V manufactured by Vishay.

Continuous Drain Current: 3.3A @ 25°C
Maximum Rds On: 60 mOhm @ 3.2A and 10V
Maximum Gate-Source Voltage: ±20V
Gate-Source Threshold Voltage: 2.2V @ 250μA
Maximum Gate Charge: 6.7nC @ 10V
Maximum Input Capacitance: 235pF @ 15V
Package: SOT-23-3 (TO-236)
Halogen-Free Compliant: Yes
Popularity: High
Supply and Demand Status: Sufficient
EOL Date (Estimated): 2024
