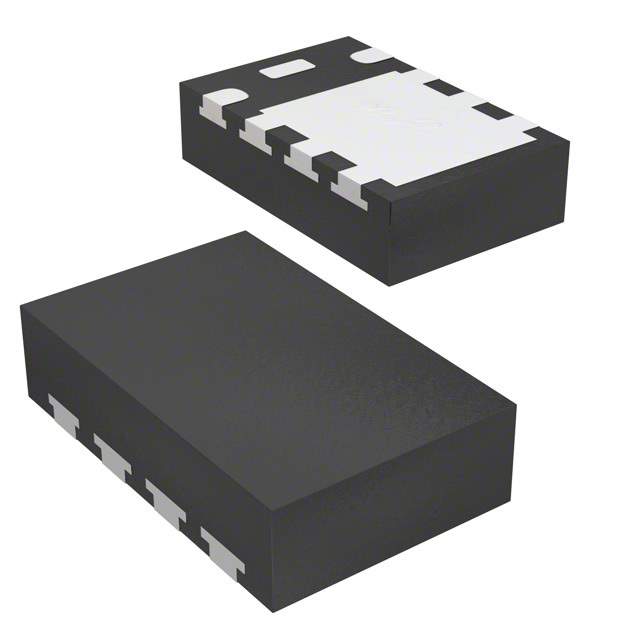

SI5486DU-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SI5486DU-T1-E3

Part No SI5486DU-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 12A PPAK CHIPFET
Datasheet
SI5486DU-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 54nC @ 8V
Max Input Capacitance 2100pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 3.1W (Ta), 31W (Tc)
Maximum Rds On at Id,Vgs 15 mOhm @ 7.7A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PowerPak ChipFet (3x1.9)
Dimension 8-PowerVDFN
Win Source Part Number 096664-SI5486DU-T1-E3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SI5486DU-T1-E3 CAD Model

Description

The Vishay 096664-SI5486DU-T1-E3 is an obsolete (EOL) electronic component product that is sufficient in supply and demand.

  • Continuous Drain Current at 25°C: 12A (Tc)
  • Maximum Rds On at Id,Vgs: 15 mOhm @ 7.7A, 4.5V
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Max Gate Charge: 54nC @ 8V
  • Quality: Reliable and high-quality electronic component that can be used in various applications
