The SI7120ADN is a P-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Vishay. It is designed for load switching and power management applications. This MOSFET features low on-resistance (RDS(on)), which minimizes power losses and improves efficiency. It's commonly used in battery management, power supplies, and various other switching applications.

Applications

• Load Switching: Used for switching loads in electronic circuits, such as controlling power to different modules.
• Power Management: Employed in power management circuits for efficient voltage regulation and distribution.
• Battery Management Systems (BMS): Utilized in BMS for controlling charging and discharging of batteries.
• DC-DC Converters: Incorporated in DC-DC converters for efficient switching and voltage conversion.
• Motor Control: Used in motor control circuits for efficient switching and speed regulation.

Features

• Low On-Resistance (RDS(on)): Minimizes power losses and improves efficiency.
• Low Gate Charge (Qg): Reduces switching losses and improves high-frequency performance.
• TrenchFET® Power MOSFET Technology: Provides high current and power handling capability.
• Logic Level Gate Drive: Can be driven directly from logic-level signals, simplifying circuit design.
• Avalanche Rated: Withstands high avalanche energy, providing robustness and reliability.
• Lead (Pb)-free and Halogen-free: Compliant with environmental regulations.

Benefits

• High Efficiency: Low on-resistance minimizes power losses and improves overall efficiency.
• Reliable Operation: Robust design and avalanche rating ensure reliable performance in demanding applications.
• Easy to Use: Logic-level gate drive simplifies circuit design and integration.
• Compact Design: Small package size allows for integration into space-constrained applications.
• Environmentally Friendly: Lead-free and halogen-free materials comply with environmental regulations.

Technical Specifications:

• Drain-Source Voltage (VDS): -30 V
• Gate-Source Voltage (VGS): ±20 V
• Continuous Drain Current (ID): -11 A (at VGS = -10 V)
• On-Resistance (RDS(on)): 12 mΩ (at VGS = -10 V)
• Gate Charge (Qg): Typically 16 nC
• Operating Temperature: -55°C to +150°C

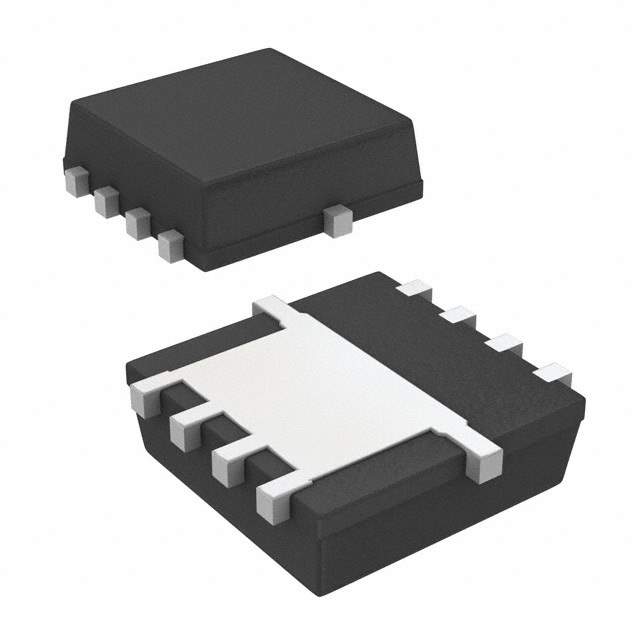

• Package Type: PowerPAK® SO-8
