ON Semiconductor 2SC3399-AC Transistor

The ON Semiconductor 2SC3399-AC is a high-performance NPN bipolar transistor that offers excellent switching speeds and low saturation voltage, making it a suitable choice for a wide range of applications. This versatile component is designed to meet the rigorous demands of modern electronic circuits, providing reliability and efficiency in a compact form factor.

Key Features

• Type: NPN Bipolar Transistor

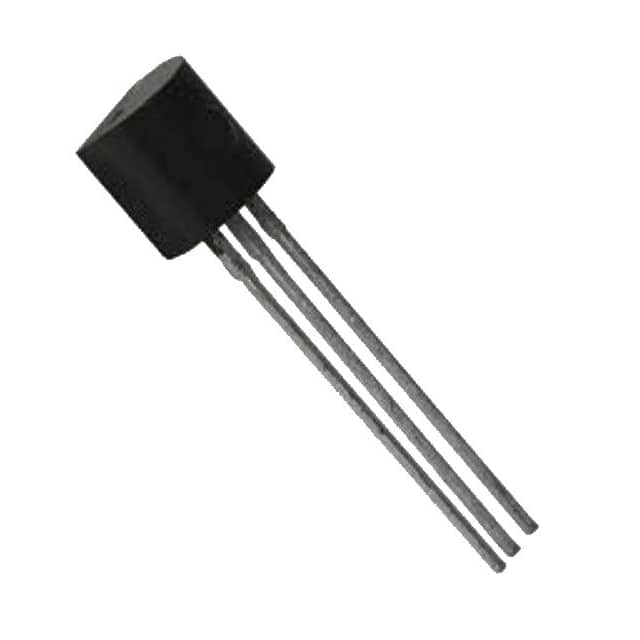

• Package: TO-92, offering a balance between performance and size, suitable for through-hole mounting.
• Collector-Emitter Voltage (Vceo): Capable of withstanding voltages up to 120V, providing a wide operating range for various applications.
• Collector Current (Ic): Supports a continuous collector current up to 50mA, making it ideal for signal amplification and switching applications.
• Transition Frequency (fT): High transition frequency of 150MHz, enabling fast switching and amplification of high-frequency signals.
• Power Dissipation (Pd): Capable of dissipating up to 400mW, ensuring stable operation under typical usage conditions.
• DC Current Gain (hFE): High DC current gain, ranging from 120 to 560, provides strong signal amplification with minimal input current.

Applications

The 2SC3399-AC transistor is particularly well-suited for applications that require quick switching and precise amplification. Its characteristics make it an excellent choice for:

• Audio frequency amplifier stages
• Signal processing circuits
• Driver stages in high-fidelity amplifiers and sound systems
• Telecommunication circuits
• General-purpose switching and amplification tasks

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 2SC3399-AC transistor is no exception. It is manufactured with state-of-the-art processes, ensuring high reliability and performance consistency. This component is designed to meet the stringent requirements of the electronic industry, making it a trusted choice for both commercial and industrial applications.

Whether you're designing audio equipment, working on telecommunication devices, or developing general-purpose electronic circuits, the ON Semiconductor 2SC3399-AC transistor offers the performance and reliability you need to ensure your products operate at their best.
