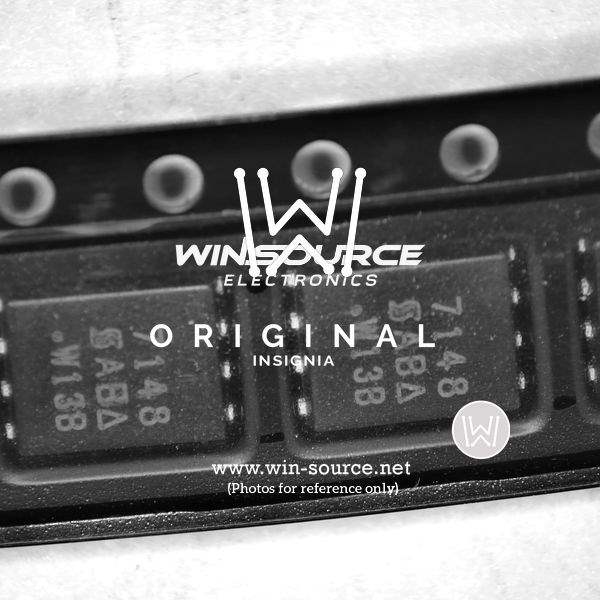

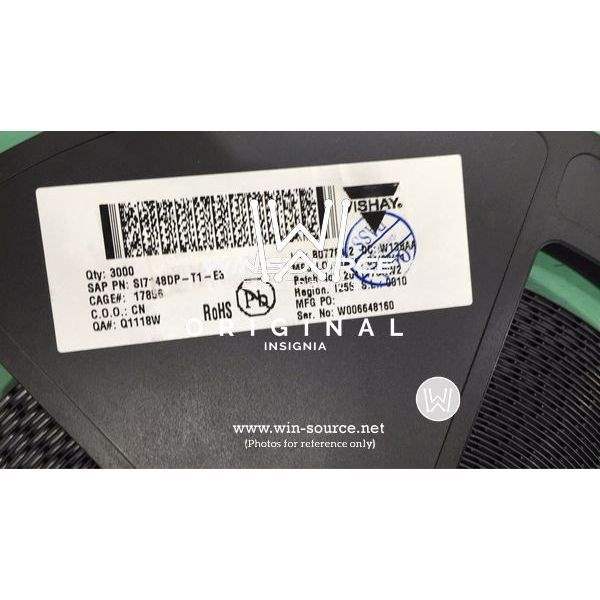

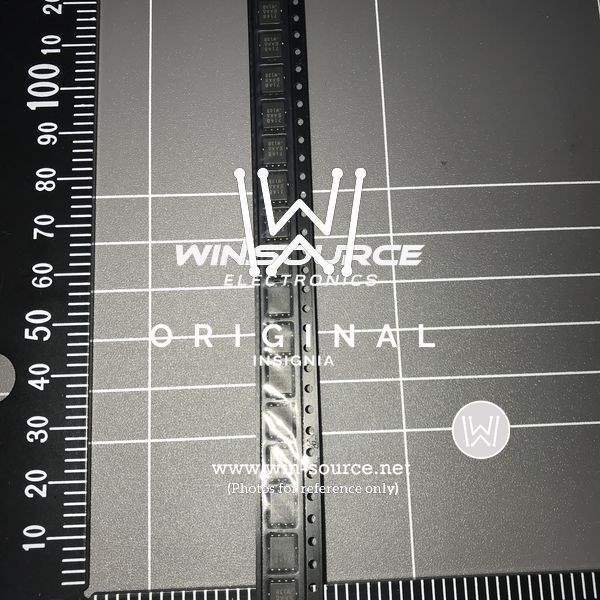

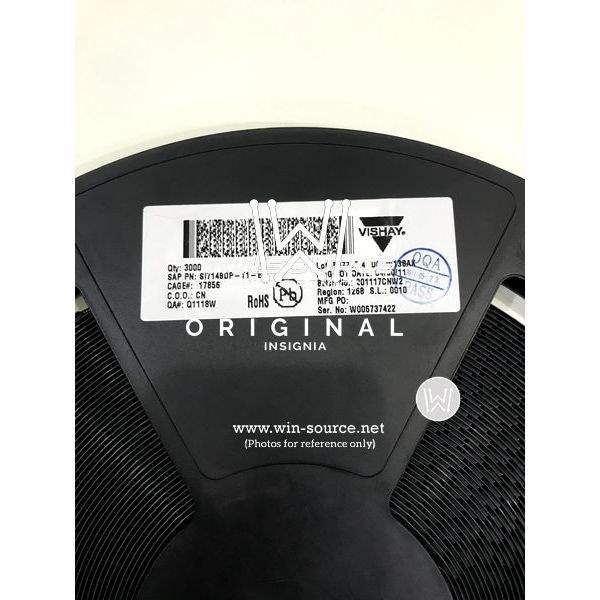

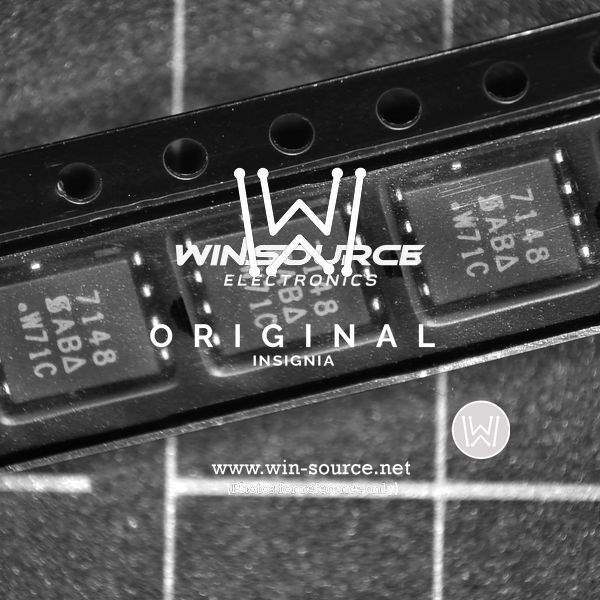

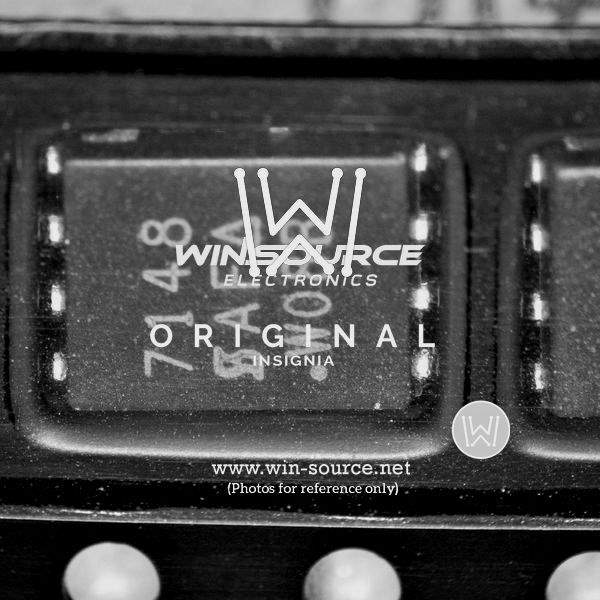

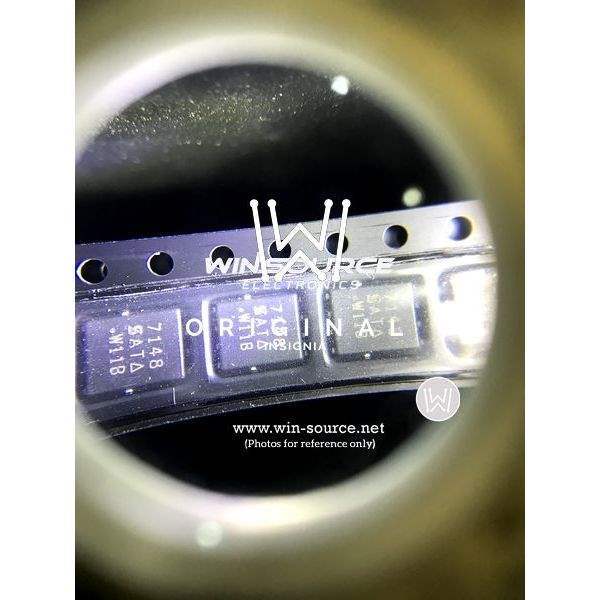

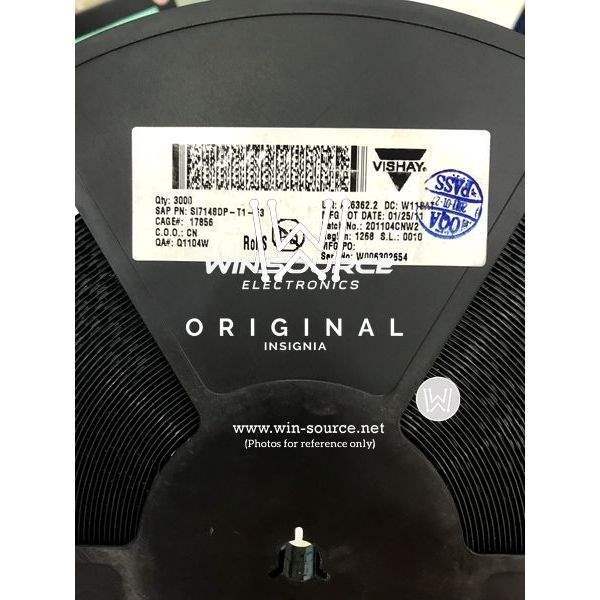

SI7148DP-T1-E3 Vishay SI7148DP-T1-E3 Real Image SI7148DP-T1-E3 real image5477 SI7148DP-T1-E3 Real Image1 SI7148DP-T1-E3 Real Image2 SI7148DP-T1-E3 real image 2 SI7148DP-T1-E3 label picture SI7148DP-T1-E3 label picture 2 SI7148DP-T1-E3 label picture 3 SI7148DP-T1-E3 real image 3
Same model may have multiple batches, images only for reference.
SI7148DP-T1-E3 Vishay SI7148DP-T1-E3 Real Image SI7148DP-T1-E3 real image5477 SI7148DP-T1-E3 Real Image1 SI7148DP-T1-E3 Real Image2 SI7148DP-T1-E3 real image 2 SI7148DP-T1-E3 label picture SI7148DP-T1-E3 label picture 2 SI7148DP-T1-E3 label picture 3 SI7148DP-T1-E3 real image 3
SI7148DP-T1-E3 Vishay SI7148DP-T1-E3 Real Image SI7148DP-T1-E3 real image5477 SI7148DP-T1-E3 Real Image1 SI7148DP-T1-E3 Real Image2 SI7148DP-T1-E3 real image 2 SI7148DP-T1-E3 label picture SI7148DP-T1-E3 label picture 2 SI7148DP-T1-E3 label picture 3 SI7148DP-T1-E3 real image 3
Same model may have multiple batches, images only for reference.

SI7148DP-T1-E3

Part No SI7148DP-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 75V 28A PPAK SO-8
Datasheet
SI7148DP-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 75V
Continuous Drain Current at 25°C 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 100nC @ 10V
Max Input Capacitance 2900pF @ 35V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 5.4W (Ta), 96W (Tc)
Maximum Rds On at Id,Vgs 11 mOhm @ 15A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PowerPAK SO-8
Dimension PowerPAK SO-8
Win Source Part Number 028608-SI7148DP-T1-E3
Family Name Si7148DP
Introduction Date September 21, 2012
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SI7148DP-T1-E3 CAD Model

Description

The Vishay Si7148DP is an N-channel MOSFET designed for use in discrete semiconductor products.

  • Power Dissipation: 5.4W (Ta) and 96W (Tc)
  • Continuous Drain Current: 28A (Tc) @ 25°C
  • Drain-Source Breakdown Voltage: 75V
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Maximum Gate-Source Voltage: ±20V
  • Package: PowerPAK SO-8
  • Maximum Rds On: 11 mOhm @ 15A, 10V
  • Applications: power supplies, motor drives, and lighting ballasts
