The SI7434ADP-T1-RE3 MOSFET (Metal Oxide) from Vishay Siliconix is a N-Channel FET designed for use in Discrete Semiconductor Products such as Transistors - FETs, MOSFETs - Single.

• Series: ThunderFET®
• Drain to Source Voltage (Vdss): 250 V
• Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta), 12.3A (Tc)
• Rds On (Max) @ Id, Vgs: 150mOhm @ 3.7A, 10V
• Vgs(th) (Max) @ Id: 4V @ 250µA
• Power Dissipation (Max): 5W (Ta), 54.3W (Tc)

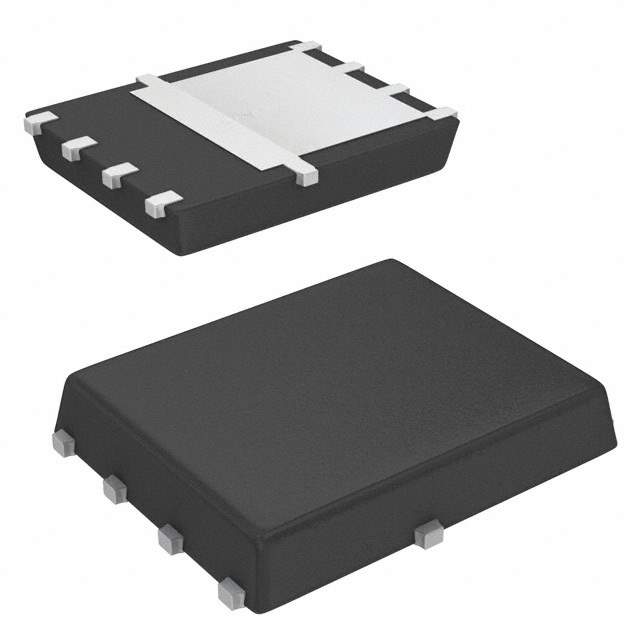

• Package: PowerPAK® SO-8
• Mounting: SMD (SMT)
• Gate Charge (Qg) (Max) @ Vgs: 16.5 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 600 pF @ 125 V
• Operating Temperature Range: -55°C ~ 150°C (TJ)
