Same model may have multiple batches, images only for reference.

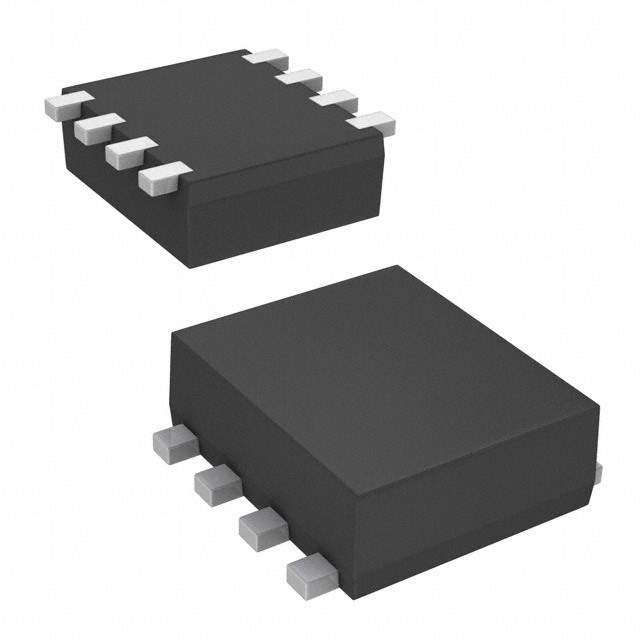

MTM78E2B0LBF Real Image
Same model may have multiple batches, images only for reference.

MTM78E2B0LBF

Part No MTM78E2B0LBF
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 4A WSMINI8-F1-B
Datasheet
MTM78E2B0LBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 4A
Maximum Rds On at Id,Vgs 25 mOhm @ 2A, 4V
Gate-Source Threshold Voltage 1.3V @ 1mA
Max Input Capacitance 1100pF @ 10V
Maximum Power Dissipation 150mW
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package WSMini8-F1-B
Win Source Part Number 024586-MTM78E2B0LBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MTM78E2B0LBF CAD Model

Description

The Panasonic Electronic Components MTM78E2B0LBF is a 2 N-Channel (Dual) FET that is designed for use in various applications. With a high popularity, this FET has a balanced supply and demand status.

  • Manufacturer: Panasonic Electronic Components
  • Win Source Part Number: 024586-MTM78E2B0LBF
  • Category: Discrete Semiconductor Products
  • Maximum Power Dissipation: 150mW
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 4A
