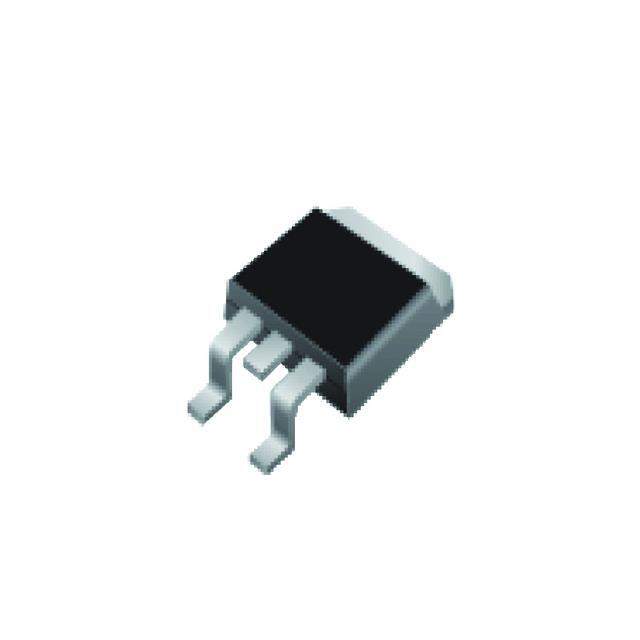

The Vishay Siliconix SIHF9Z24STRR-GE3 is a P-channel MOSFET transistor with a drain to source voltage (Vdss) of 60V and a current-continuous drain (Id) @ 25°C of 11A (Tc).

• Drain to Source Voltage (Vdss): 60V
• Current-Continuous Drain (Id) @ 25°C: 11A (Tc)
• Rds On (Max) @ Id, Vgs: 280mOhm @ 6.6A, 10V
• Vgs(th) (Max) @ Id: 4V @ 250µA
• Power Dissipation (Max): 3.7W (Ta), 60W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 19nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds: 570pF @ 25V
• Vgs (Max): ±20V
• Package: Tape & reel
• Mounting: SMD (SMT)
• Technology: MOSFET (Metal Oxide)
• ECCN: EAR99
• Drive Voltage (Max Rds On, Min Rds On): 10V
