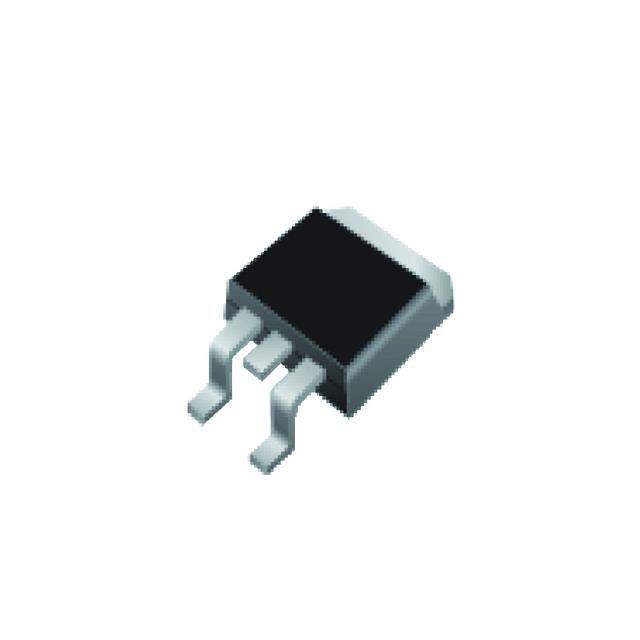

Same model may have multiple batches, images only for reference.

SIHL620S-GE3

Name: SIHL620S-GE3
Brand: Vishay
SKU: 1223972
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SIHL620S-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	LOGIC MOSFET N-CHANNEL 200V / N-Channel 200 V 5.2A (Tc) 3.1W (Ta), 50W (Tc) Surface Mount D²PAK (TO-263)
Datasheet	SIHL620S-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	5.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	800mOhm @ 3.1A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 5 V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	360 pF @ 25 V
Power Dissipation (Max)	3.1W (Ta), 50W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	D2PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	742-SIHL620S-GE3TR,742-SIHL620S-GE3DKR,742-SIHL620S-GE3CT
Standard Package	1,000
Win Source Part Number	1223972-SIHL620S-GE3
Ultra Librarian 3D Model	Ultra Librarian SIHL620S-GE3 CAD Model

Alternative Products

Description

The SIHL620S-GE3 is an N-channel MOSFET with a drain to source voltage of 200 V from Vishay Siliconix.

Continuous Drain Current: 5.2A @ 25°C
Application: Discrete semiconductor products such as transistors, FETs, and MOSFETs
Maximum Rds On: 800mOhm @ 3.1A and 10V
Gate Charge: 16nC @ 5V
Input Capacitance: 360pF @ 25V
Gate-Source Threshold Voltage: 2V @ 250μA
Package/Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package: D2PAK (TO-263)
Power Dissipation: 3.1W (Ta), 50W (Tc)
Operating Temperature Range: -55°C ~ 150°C (TJ)
